- Intel® LGA 1700 socket: Ready for Intel® Core™ Next-Gen & 13th Gen Intel® Core™ processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
- Premium power solution: 16+1+1 power stages, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power deliver
- Exclusive AI & memory technology: AI Overclocking, AI Cooling II, Two-Way AI Noise Cancelation and ASUS Enhanced Memory Profile II
- Next-gen connectivity: PCIe® 5.0, USB 20Gbps, front USB 20Gbps, Thunderbolt™ 4 header and Power Delivery 3.0
- Made for online Gaming: WiFi 6E with ASUS WiFi Q-Antenna, Intel 2.5 Gb Ethernet with TUF LANGuard
- Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
- Comprehensive cooling: Enlarged VRM and chipset heatsinks, M.2 heatsinks, hybrid fan headers and the Fan Xpert 4 utility in Armoury Crate
- Aura Sync RGB effects: Stylish edge lighting design, addressable RGB headers and RGB strip header support.
- PC DIY design: PCIe Slot Q-Release, M.2 Q-Latch, Q-LED, Q-Antenna and SafeSlot
Support OC
Intel
Memories Type Support
DDR5
Number of M.2 Support
3
Series Motherboard
Z
موديل المنتج
TUF GAMING PRO
المصنع
ASUS
اللون
BLACK
قاعدة المعالج
Intel® LGA 1700 socket: Ready for Intel® Core™ 14th & 13th Gen Intel® Core™ processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
نوع الشريحة
Intel® Z790 Chipset
منافذ M.2
3
منافذ ساتا
4 x SATA 6Gb/s ports
منافذ الذاكرة العشوائية
4 x DIMM slots, max. 192GB, DDR5
منفذ PCIE
1 x PCIe 5.0 x16 slot
جيل PCIE
Intel® Core™ Processors(14th & 13th & 12th )*
منافذ الصوت
5 x Audio jacks
منافذ يو إس بي

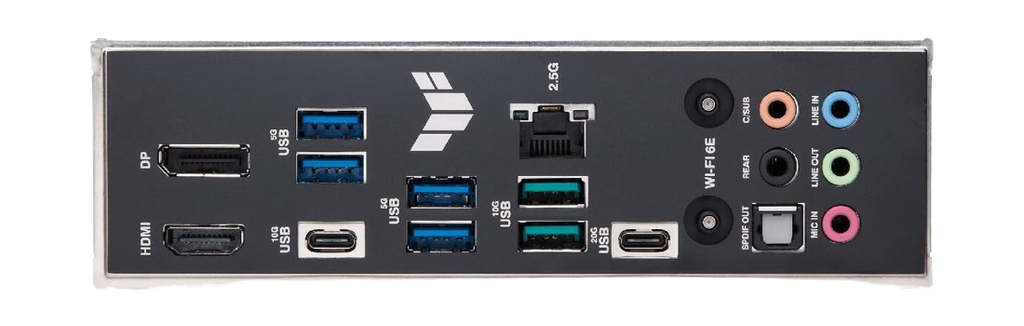

Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Wi-Fi
Wi-Fi 6E
BLUETOOTH
Bluetooth® v5.3
