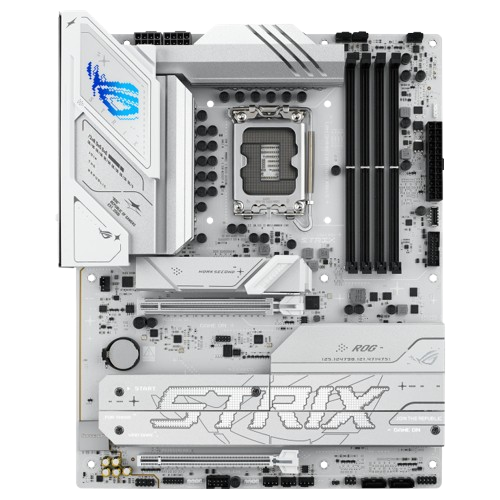

ROG STRIX B860-A
gaming wifi
With NPU support and AI-enhanced solutions, the ROG STRIX B860-A Gaming WiFi is ready for advanced AI PC applications. Featuring a USB4® (20Gbps) port, PCIe® 5.0, and Aura Sync RGB lighting, it offers fast data transfers, versatile connectivity, and a customizable aesthetic to match your style.
ROBUST POWER SOLUTION14 + 1 + 2 + 1 power solution rated for up to 80A per stage
AI Networking II-
USB4® (20Gbps) PORT
GEN 5 SUPPORTX1 Onboard M.2 Slot
DDR59066+ MT/s,
MAX. 256GB, DIMM FIT, AEMP III
DIY-FRIENDLY DESIGN
Support OC
Ultra
Memories Type Support
DDR5
Number of M.2 Support
4
Series Motherboard
B
موديل المنتج
ROG STRIX
المصنع
Asus
اللون
White
قاعدة المعالج
LGA1851
نوع الشريحة
Intel® B860 Chipset
آر جي بي
Yes
منافذ M.2
4 x
منافذ ساتا
4 x SATA
منافذ الذاكرة العشوائية
4 x DIMM slots, max. 256GB, DDR5
منفذ PCIE
Intel® Core™ Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot Intel® B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)* * M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.
منافذ الصوت
2 x Audio jacks
واي فاي وبلوتوث
Wi-Fi 7 - Bluetooth® v5.4
منافذ يو إس بي
Rear USB (Total 10 ports) 1 x USB4® (20Gbps) port (1 x USB Type-C®) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 5 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A
