- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications.
- Intel LGA 1851 Socket: Support Intel® Core™ Ultra Processors (Series 2).
- Enhanced Power Solution: 8+1+1+1 80A DrMOS power stages, 6-layer PCB, 8+8 pin ProCool power connectors, alloy chokes and durable capacitors for stable power delivery.
- Latest M.2 Support: One onboard PCIe 5.0 M.2 slot equipped with one M.2 heatsink and two PCIe 4.0 M.2 slots.
- Ultrafast Connectivity: PCIe 5.0 x16 slot, Realtek 2.5Gb Ethernet, rear USB 20Gbps Type-C® port, front USB 5Gbps Type-C® connector.
- Comprehensive Cooling: Enlarged VRM heatsink, one M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+.
- DIY Friendly Design: Q-Dashboard, Q-DIMM, Q-LED, Q-slot and Pre-mounted I/O shield.
- Unmatched Personalization: Three Addressable Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting.
- Renowned Software: ASUS DriverHub, ASUS MyHotkey, Aura Sync.
Support OC
Ultra
Memories Type Support
DDR5
Number of M.2 Support
3
Series Motherboard
B
موديل المنتج
PRIME
المصنع
Asus
اللون
Black & White
قاعدة المعالج
Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
نوع الشريحة
Intel® B860 Chipset
منافذ M.2
Total supports 3 x M.2
منافذ ساتا
4 x SATA 6Gb/s ports
منافذ الذاكرة العشوائية
4 x DIMM slots, max. 256GB, DDR5 Support up to 8666+MT/s (OC),
منفذ PCIE
ntel® Core™ Ultra Processors (Series 2)* 1 x PCIe 5.0 x16 slot Intel® B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)
منافذ الصوت
3 x Audio jacks
واي فاي وبلوتوث
No
منافذ يو إس بي

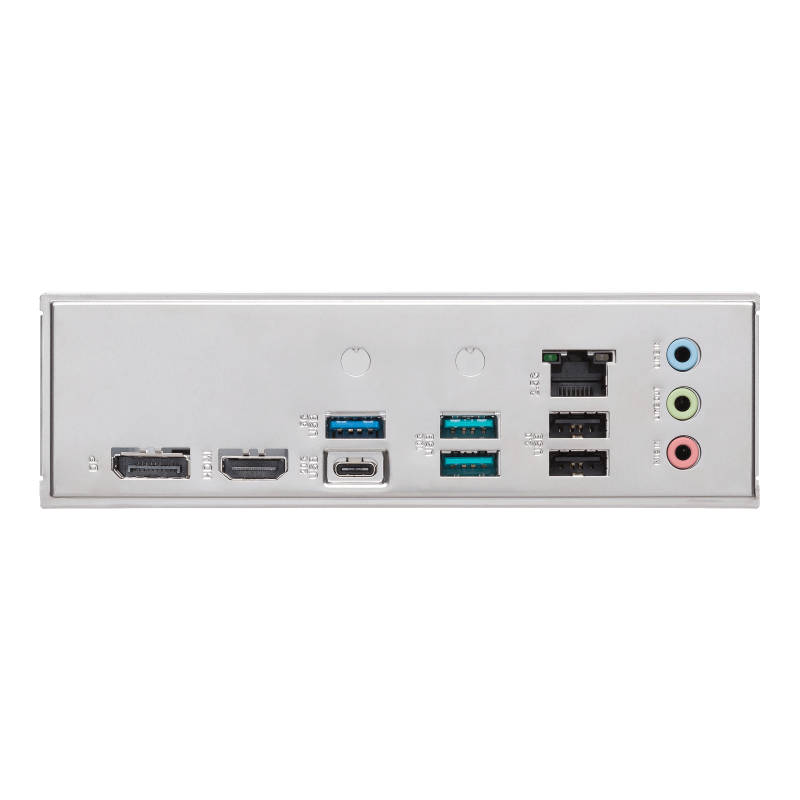

Rear USB (Total 6 ports) 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 2 x USB 10Gbps ports (2 x Type-A) 1 x USB 5Gbps port (1 x Type-A) 2x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (1 x USB Type-C®) 1 x USB 5Gbps header supports additional 2 USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A
