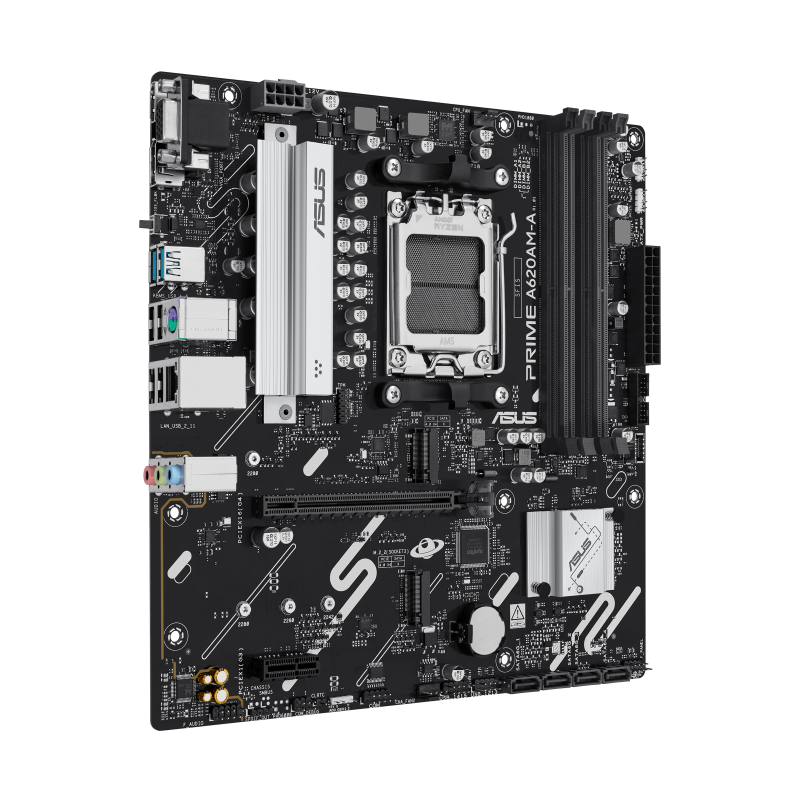

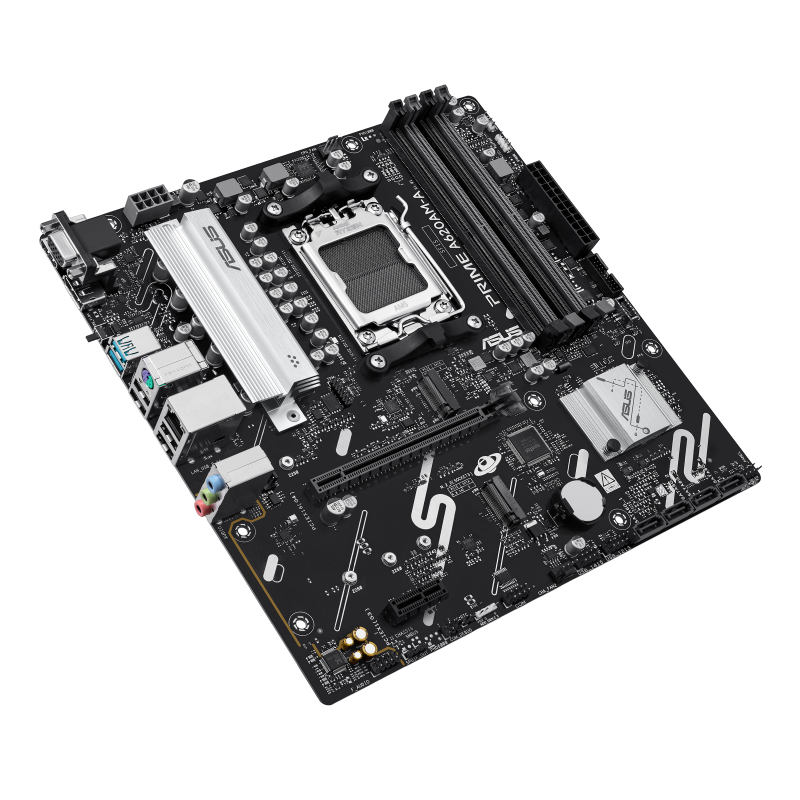

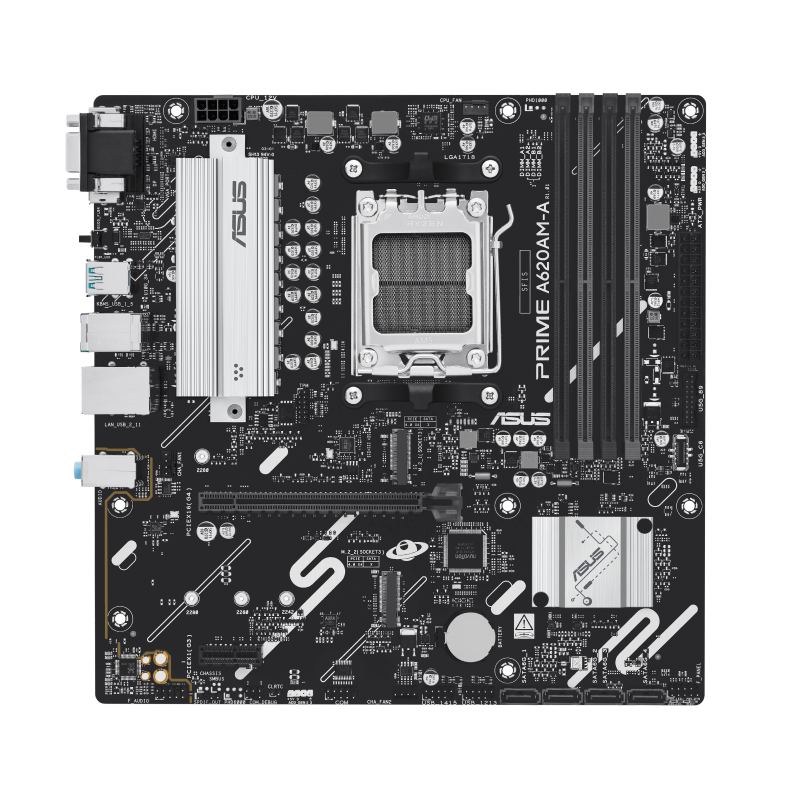

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME A620AM-A-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- Enhanced Power Solution: 6-layer PCB, alloy chokes and durable capacitors for stable power delivery
- Ultrafast Connectivity: PCIe 4.0 x16 slot, dual PCIe 4.0 M.2 slots, rear USB 10Gbps Type-A ports, front USB 5Gbps Type-C® connector
- Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- DIY Friendly Design: BIOSFlashBack™, Q-LED Core
- Unmatched Personalization: Three Addressable RGB Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
- Renowned Software: Armoury Crate, ASUS DriverHub
Support OC
AMD
Memories Type Support
DDR5
Number of M.2 Support
2
Series Motherboard
Z
موديل المنتج
PRIME
المصنع
Asus
قاعدة المعالج
AM5
اللون
Black
نوع الشريحة
AMD A620A Chipset
منافذ M.2
Total supports 2 x M.2 slots
منافذ ساتا
4 x SATA 6Gb/s ports
منافذ الذاكرة العشوائية
4 x DIMM slots, max. 256GB, DDR5 Supports up to 7600+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture
منفذ PCIE
AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD A620A Chipset 1 x PCIe 3.0 x1 slot
منافذ الصوت
3 x Audio jacks
منافذ يو إس بي

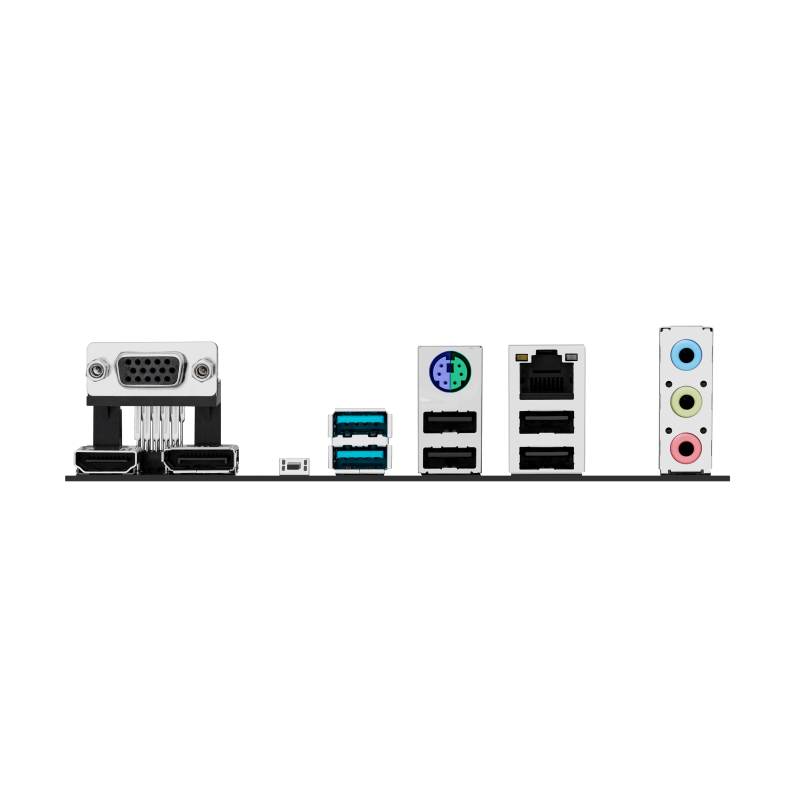

Rear USB (Total 6 ports) 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A.
