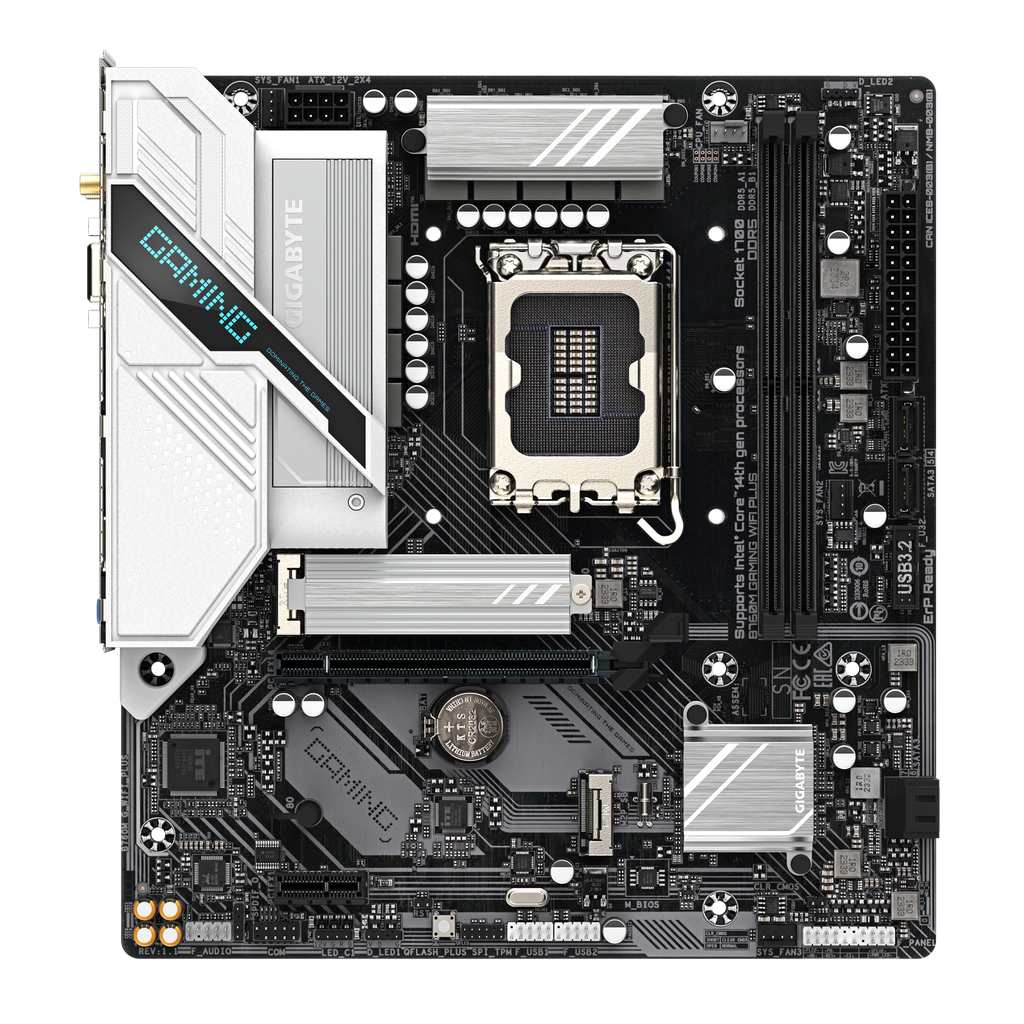

- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
- Dual Channel DDR5：2*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN & Wi-Fi 802.11ac

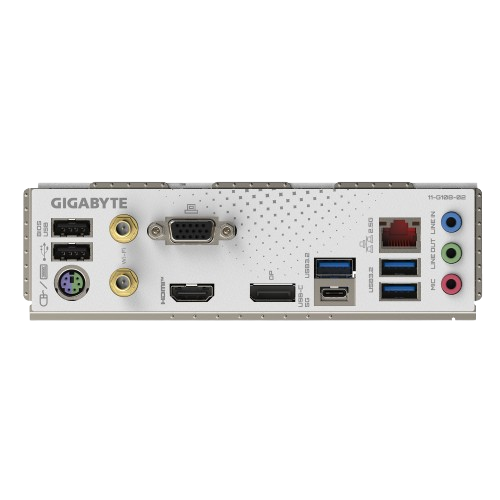

- Extended Connectivity：Rear USB-C® 5Gb/s, DP, HDMI, D-Sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Support OC
Intel
Memories Type Support
DDR5
Number of M.2 Support
2
Series Motherboard
B
موديل المنتج
GAMING PLUS
المصنع
Gigabyte
اللون
White & Black
قاعدة المعالج
LGA1700 socket
نوع الشريحة
Intel® B760 Express Chipset
آر جي بي
2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header
منافذ M.2
2 x M.2 Socket 3 connectors
منافذ ساتا
4 x SATA 6Gb/s connectors
منافذ الذاكرة العشوائية
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture
منفذ PCIE
1 x PCI Express x16 slot
منافذ الصوت
3 x audio jacks
واي فاي وبلوتوث
Realtek® Wi-Fi 6 RTL8851BE - BLUETOOTH 5.3
منافذ يو إس بي
Chipset: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
