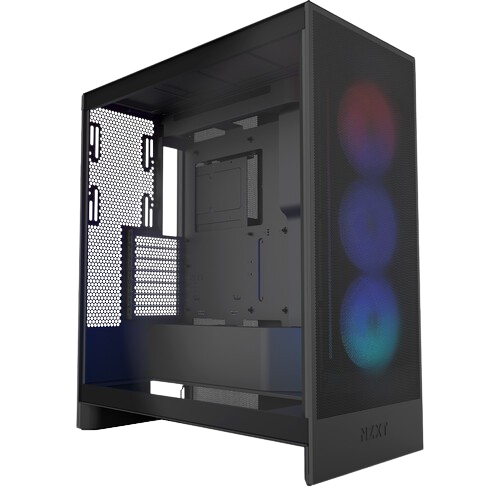

The H7 Flow RGB revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.
- Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.
- Comes equipped with a F360 RGB Core single-frame fan for exceptional out-of-the-box cooling and RGB lighting.
- High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
- Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.
- Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
- Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
- Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.

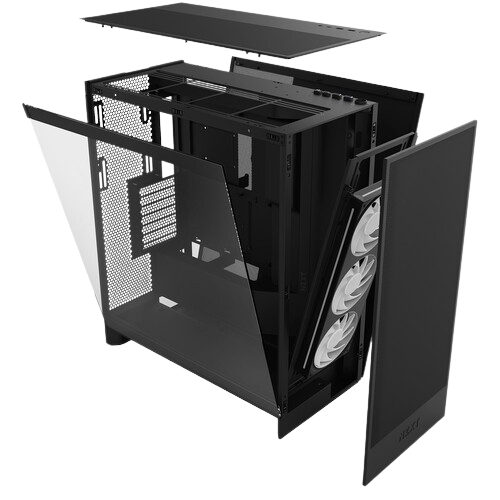

- Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
Cooler Type Support
Both Cooler
Air Cooler Height Support
185
Radiator Size Values
360/
240/
120/
280/
140/
420/
Built in Fans Number
3
Fans Number Support
10
موديل المنتج
H7 Flow RGB
دعم المذربورد
Mid-Tower
المصنع
NZXT
اللون
Black
خيارات المراوح

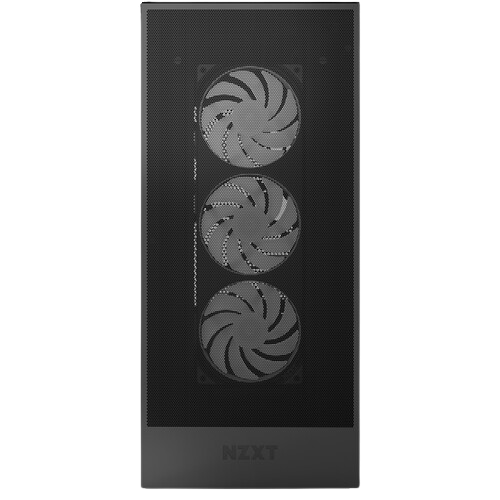

Front:3 x 120 mm / 3 x 140 mm (1 x F360 RGB Core included) Top:3 x 120 mm / 2 x 140 mm Bottom:3 x 120 mm Rear:1 x 120 mm / 1 x 140 mm Filters:High-Performance Mesh
عدد المراوح المركبة مسبقا
(1 x F360 RGB Core included)
الحد الأقصى للمراوح
10
وحدة تخزين هاردسك HDD
2
وحدة تخزين هاردسك SSD
2+2
منافذ التوسعة
7
عدد منافذ اليو إس بي 3.0
2
عدد المنافذ اليو إس بي تايب سي
1
منفذ السماعة/ المايكروفون
1
الزجاج
Ultra-Clear Tempered Glass
الوزن
11.13 kg
الأبعاد
Height (With Feet):544 mm Width:244 mm Depth:468 mm
