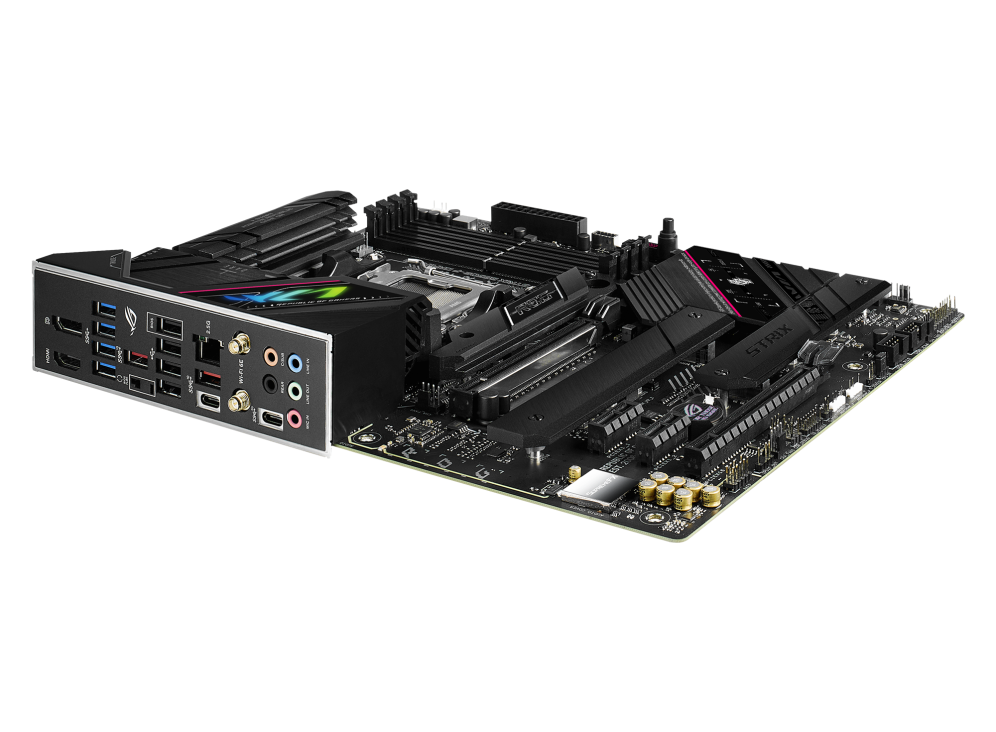

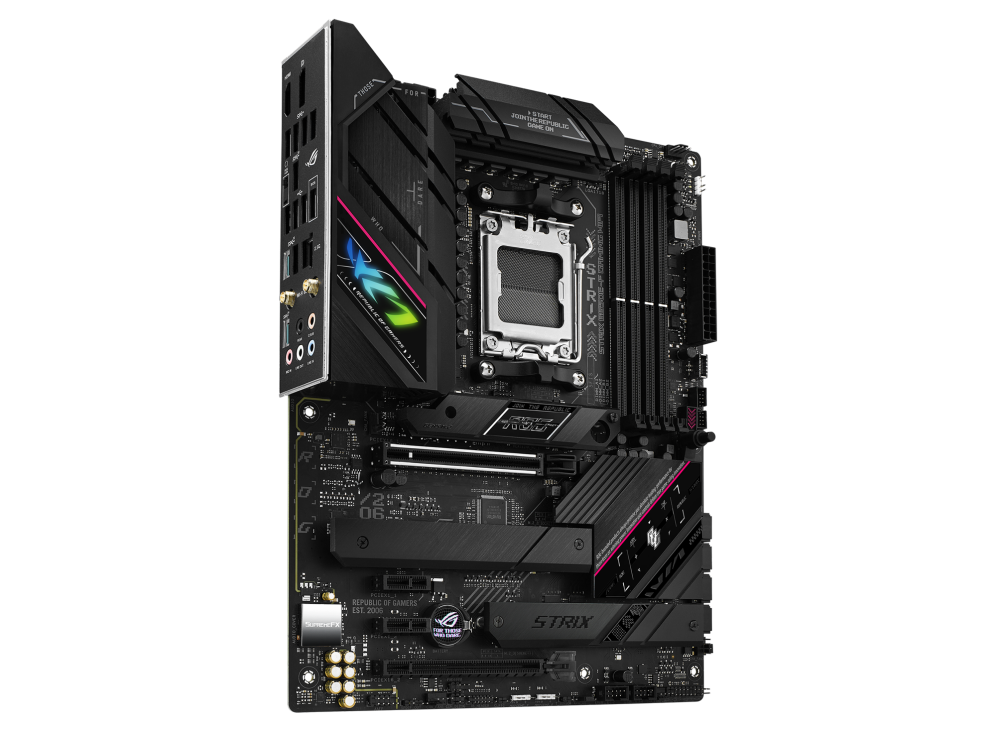

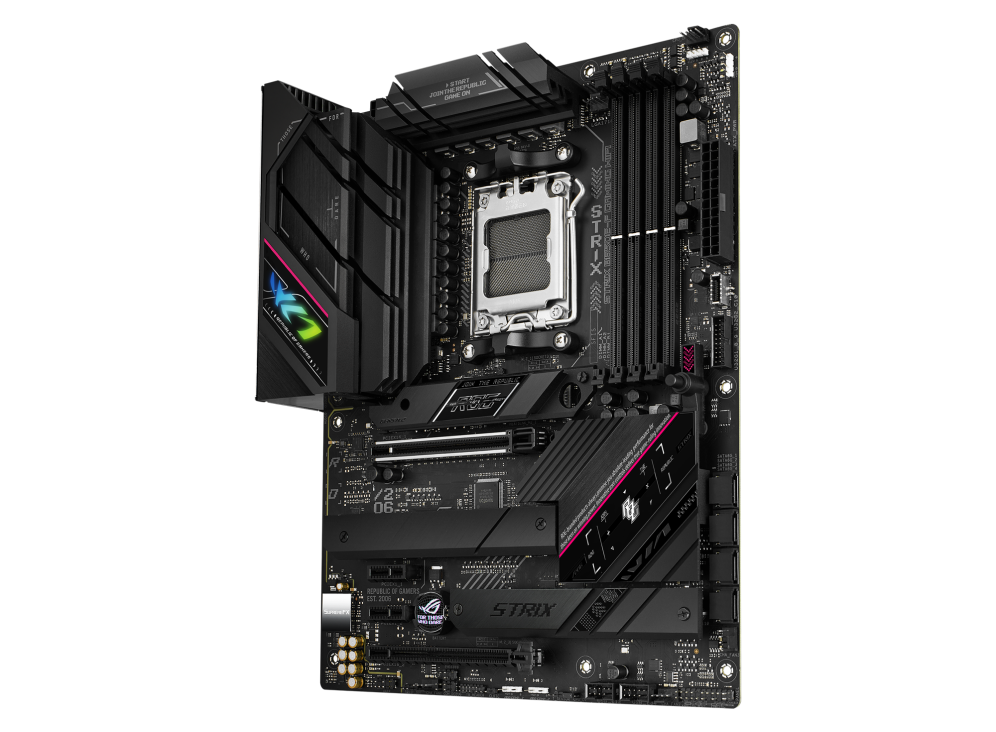

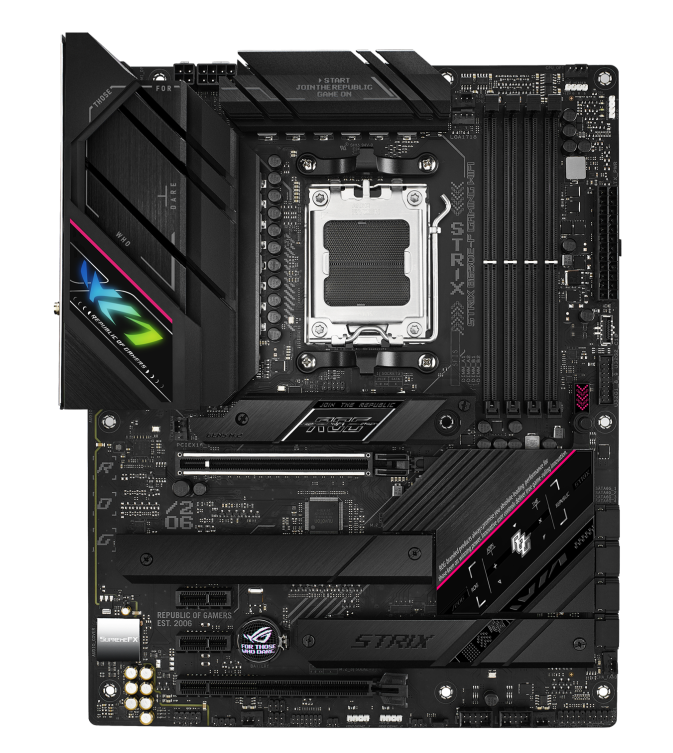

This mean machine is the heart of your next hot rod. With the stunning speed of PCIe 5.0 and WiFi 6E, hearty cooling from onboard heasinks, and advanced power design engineered for the latest Ryzen™ processors, the ROG Strix B650E-F leaves its competition in the dust. This platform delivers the power and connectivity that advanced AI PC applications demand.
Support OC
AMD
Memories Type Support
DDR5
Number of M.2 Support
3
Series Motherboard
B
MODEL SERIES
ROG STRIX
MANUFACTURER
Asus
COLOR
Black
CPU SOCKET
AM5 Socket for AMD Ryzen™ 9000& 8000 & 7000 Desktop Processorss
Chipset
AMD B650
M.2 Slots
Total supports 3 x M.2
SATA PORTS
4 x SATA 6Gb/s ports*
RAM SLOTS
4 x DIMM, Max. 192GB, DDR5
PCIE Slot
AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (support x8/x4 mode)* AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)** 2 x PCIe 4.0/3.0 x1 slots *Specification vary by CPU types.* ** PCIe 4.0 x16 slot (supports x4 mode) from AMD B650 Chipset shares bandwidth with M.2_3.
Audio
5 x Audio jacks
Wi-fi & Bluetooth
Wi-Fi 6E - Bluetooth v5.2
USB PORTS
