Intel Socket LGA 1700
Intel Z790 Chipset
4x DDR4 Slots - up to 128GB
4x SATA 6Gb/s | 4x M.2 Slot
1 x DisplayPort | 1 x HDMI Port
ATX Form Factor
Support OC
Intel
Memories Type Support
DDR4
Number of M.2 Support
4
Series Motherboard
Z
MODEL SERIES

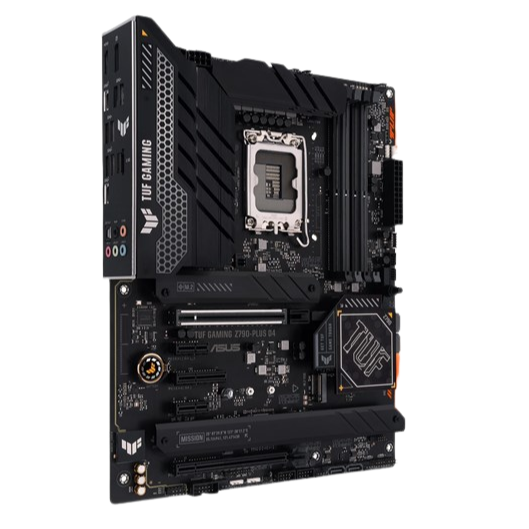

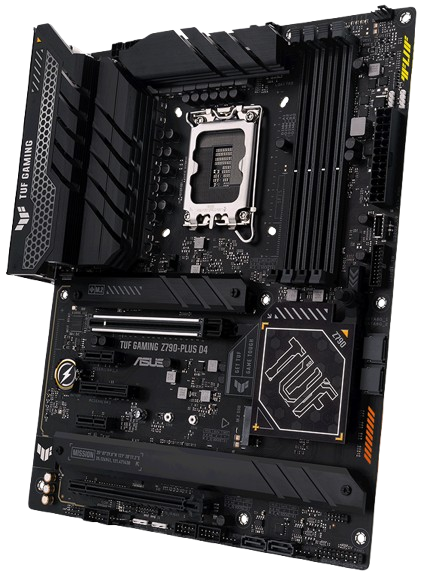

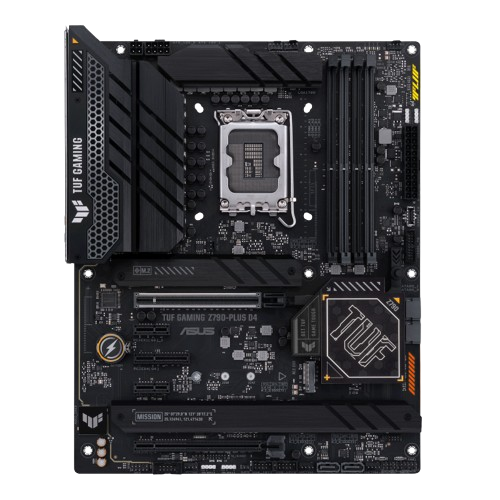

TUF GAMING Z790-PLUS D4
MANUFACTURER
ASUS
ATX
Processor Socket
LGA1700
Chipset
Intel® Z790 Chipset
SATA PORTS
4 x SATA 6Gb/s ports
RAM SLOTS
4 x DIMM, Max. 128GB, DDR4
PCIE Slot
» 1 x PCIe 5.0 x16 SafeSlot » 1 x PCIe 4.0 x16 Slot (max @x4) » 1 x PCIe 4.0 x4 » 2 x PCIe 3.0 x1
PCIE GEN
PCIE 5
USB PORTS

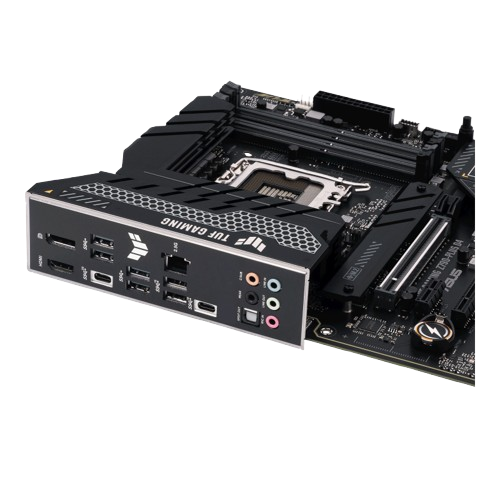

Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
5 x Audio jacks
