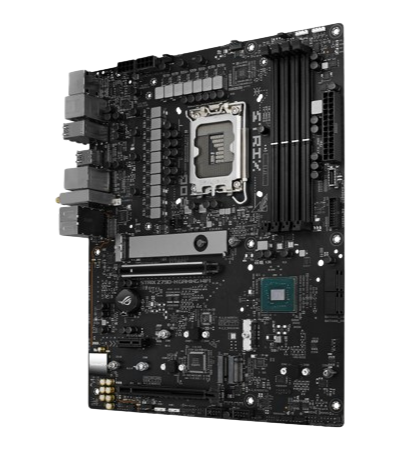

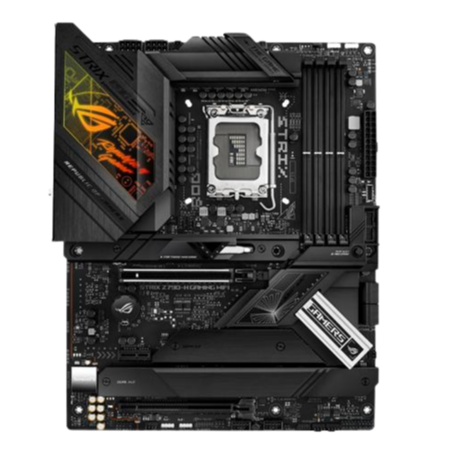

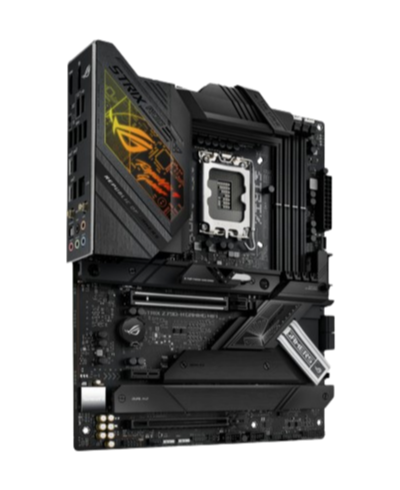

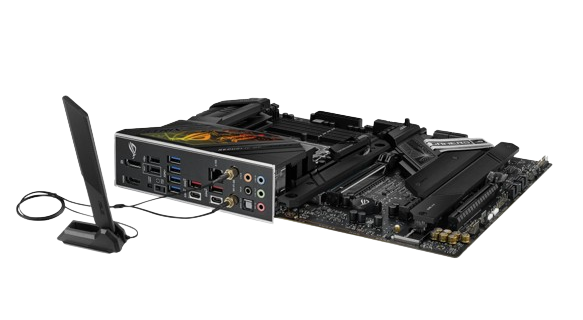

ROG STRIX Z790-H GAMING WIFI
Strike stealthily with the powerfully potent ROG Strix Z790-H. Thick black heatsinks keep VRM temperatures under wraps, allowing Intel® 13th Gen processors room for higher boosts. Four M.2 slots are similarly outfitted, and the top slot comes with a combo sink to sneak in extra cooling. PCIe 5.0 support lies in wait for next-gen graphics cards, and cutting-edge WiFi 6E and USB 3.2 Gen 2x2 fully flesh out connectivity.
Support OC
Intel
Memories Type Support
DDR5
Number of M.2 Support
4
Series Motherboard
Z
MODEL SERIES
ROG STRIX Z790-H GAMING
MANUFACTURER
ASUS
COLOR
BLACK
CPU SOCKET
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset
Intel® Z790 Chipset
SATA PORTS
4 x SATA 6Gb/s ports
RAM SLOTS
4 x DIMM, Max. 192GB, DDR5
PCIE Slot
1 x PCIe 5.0 x16 slot
PCIE GEN
Intel® 13th & 12th Gen Processors
Audio
5 x Gold-plated audio jacks
USB PORTS
Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Wi-Fi
2x2 Wi-Fi 6E
BLUETOOTH
Bluetooth® v5.3
