- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Intel® 1Gb Ethernet and USB 3.2 Gen 2 support
- Comprehensive Cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
Support OC
Intel
Memories Type Support
DDR5
Number of M.2 Support
2
Series Motherboard
H
MODEL SERIES
Prime CSM
MANUFACTURER
Asus
COLOR
BLACK
CPU SOCKET
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen
Chipset
Intel® H610 Chipset
RGB
- AURA RGB headers - Addressable Gen 2 headers
M.2 Slots
2
SATA PORTS
4 x SATA 6Gb/s ports
RAM SLOTS
2 x DIMM slots, Max. 96GB, DDR5
PCIE Slot
Intel® Core™ Processors (14th & 13th & 12th Gen)* 1 x PCIe 4.0 x16 slot Intel® H610 Chipset 1 x PCIe 3.0 x1 slot
Audio
3 x Audio jacks
Wi-fi & Bluetooth
NO
USB PORTS

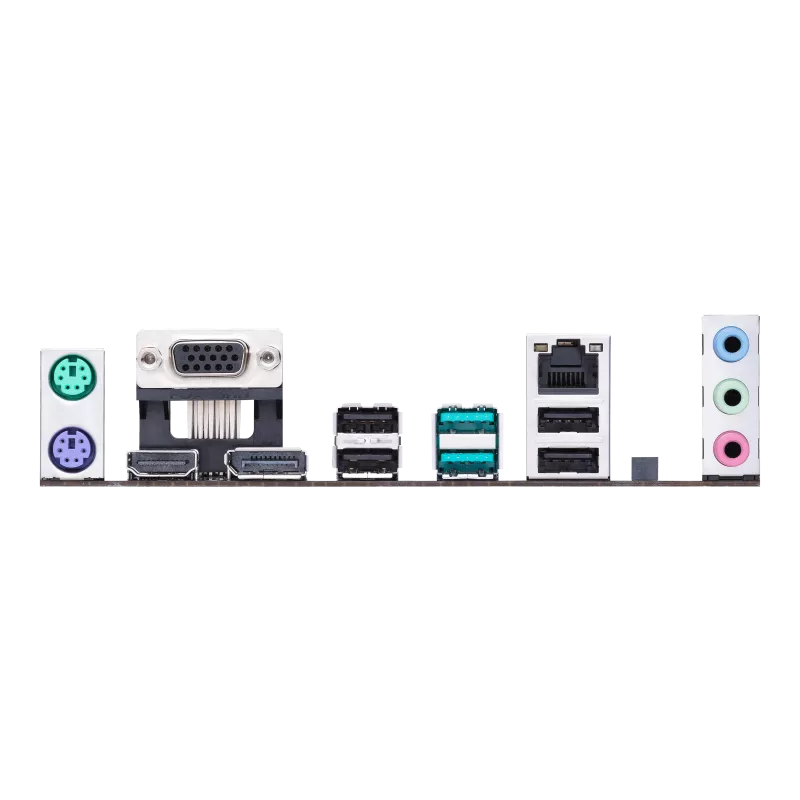

Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 5 ports) 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 1 USB 2.0 port 1 x USB 2.0 header supports additional 2 USB 2.0 ports
