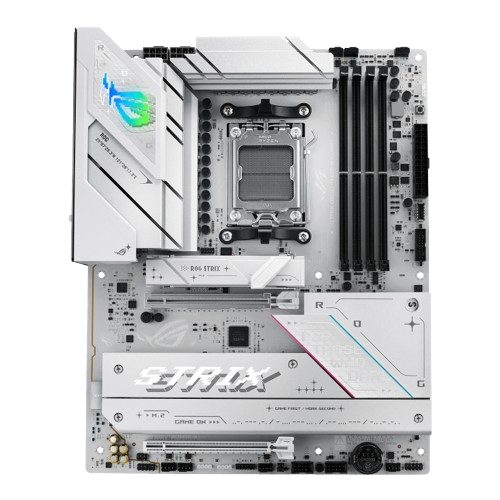

ROG STRIX B850-A
gaming wifi
Elevate your build with the ROG Strix B850-A Gaming WiFi. Featuring a sleek white PCB and support for AMD Ryzen™ 9000 Series processors, this motherboard delivers the power and connectivity needed for advanced AI applications. With DDR5 support, full PCIe 5.0 capabilities, USB 20Gbps port, and WiFi 7, it's the ultimate blend of style and performance.
Support OC
AMD
Memories Type Support
DDR5
Number of M.2 Support
4
Series Motherboard
B
MODEL SERIES
ROG STRIX Gaming
MANUFACTURER
ASUS
COLOR
White
CPU SOCKET
AMD Socket AM5
Chipset
AMD B850 Chipset
M.2 Slots
Total supports 4 x M.2 slots
SATA PORTS
2 x SATA 6Gb/s ports
RAM SLOTS
4 x DIMM slots, max. 256GB, DDR5
PCIE Slot
1 x PCIe 5.0 x16 slot
Audio
2 x Audio jacks
Wi-fi & Bluetooth
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. - Bluetooth® v5.4
USB PORTS
Rear USB (Total 10 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A
