ASUS TUF GAMING X870E-PLUS WIFI7 takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
Support OC
AMD
Memories Type Support
DDR5
Number of M.2 Support
4
Series Motherboard
Z
MODEL SERIES
TUF GAMING
MANUFACTURER
Asus
COLOR
Black
CPU SOCKET
AMD Socket AM5
Chipset
AMD X870E Chipset
M.2 Slots
Total Supports 4 x M.2 slots
SATA PORTS
4 x SATA 6Gb/s ports
RAM SLOTS
4 x DIMM slots, max. 256GB, DDR5
PCIE Slot
1 x PCIe 5.0 x16 slot**
Audio
3 x Audio jacks
Wi-fi & Bluetooth
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate - Bluetooth® v5.4***

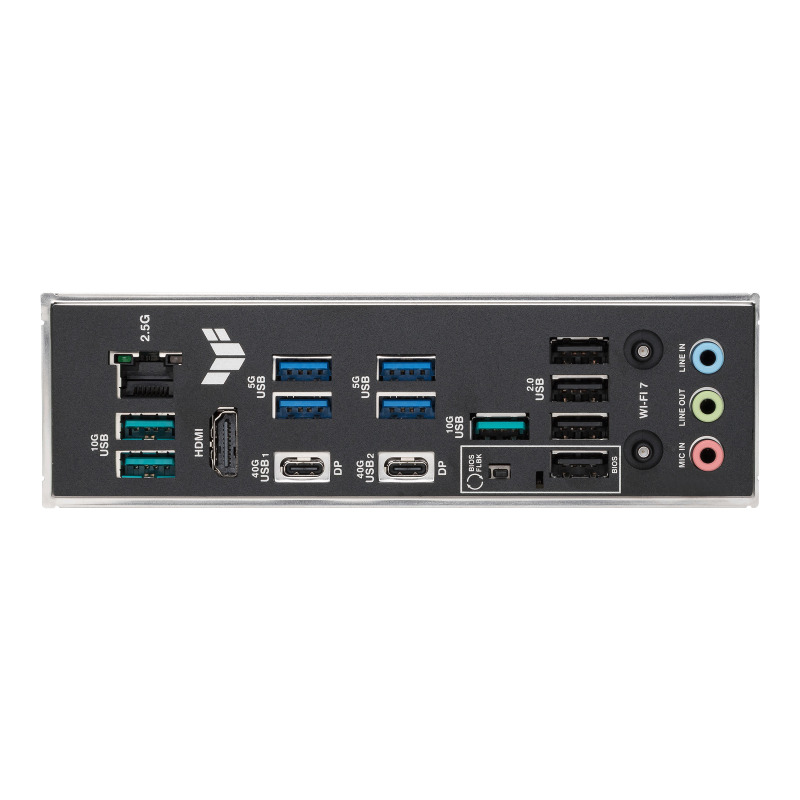

USB PORTS
Rear USB (Total 13 ports) 2 x USB4® (40Gbps) ports (2 x USB Type-C®)* 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)** 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A.
