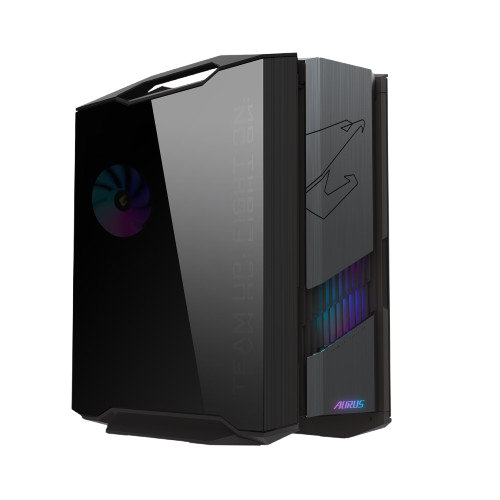

The Gigabyte AC601G E-ATX case in black presents a stylish and sophisticated design that combines aesthetics with functionality. It features a sleek matte black finish, a mesh front panel for improved airflow, and tempered glass side panels that highlight the internal components. Its clean and professional look makes it a perfect fit for high-performance builds.
FEATURES
- Iconic AORUS aesthetics
- Optimized airflow and cooling design
- Modular, tool-less setup
- Vertical GPU support
- Support for up to 420mm radiators
- Reverse-connector motherboard compatible
- Easy cable management

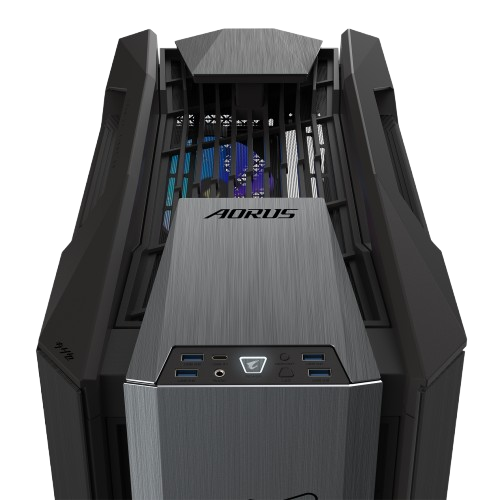

- Front I/O with 4× USB 3.0 & USB 3.1 Gen2 Type-C
- RGB Fusion
- Built-in ARGB & PWM hub

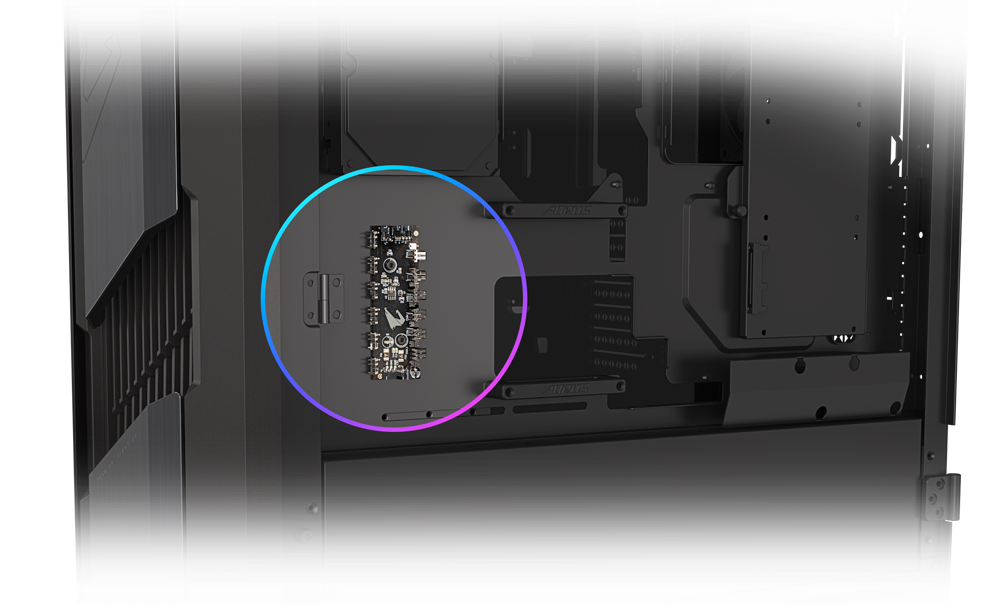

BUILT-IN ARGB & PWM HUB
Includes a controller with six 5V 3-pin ARGB headers and six PWM fan headers to simplify lighting and cooling expansion while keeping wiring clean.
Cooler Type Support
Both Cooler
Air Cooler Height Support
200
Radiator Size Values
360/
240/
120/
280/
140/
420/
Built in Fans Number
4
Fans Number Support
7
MODEL SERIES
AC601G
MANUFACTURER
GLGABYTE
COLOR
Black
Weight
N.W. 21.5 Kg G.W. 28.15 Kg
Motherboard Support
Mini ITX / Micro ATX / ATX / E-ATX
Fan Options
Front : 120mm x3 / 140mm x3 Top : 120mm x3 / 140mm x3 Rear : 140mm x1
Built in fans No.
Front : 140mm x3 ARGB&PWM Rear : 140mm x1 ARGB&PWM
Fans Number Support
Front : 120mm x3 / 140mm x3 Top : 120mm x3 / 140mm x3 Rear : 140mm x1
HDD 3.5" Storage
4
SSD 2.5" storage
3 + 4 (replace from 3.5")
Expansion Slots
8
Number of USB 3.0
4
Number of USB C
1
Headphone/Microphone
1
Glass
Tow sides
DIMENSIONS
H611x W290x D565 mm (Within ± 1% error)
