Key Features
- AMD Socket AM5：Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
- Unparalleled Performance：Twin 12+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- Superfast Storage：1* PCIe 5.0 x4 and 1* PCIe 4.0 x4 M.2 Connector
- Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
- EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E

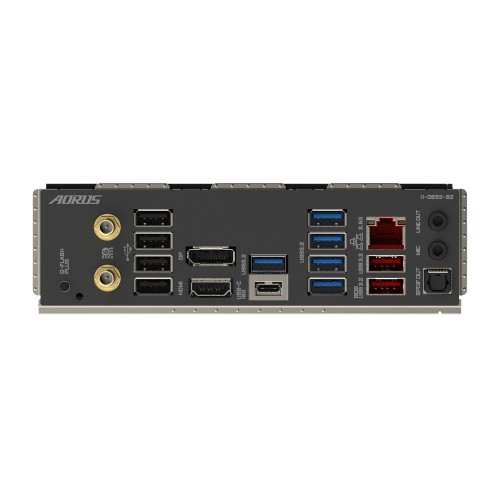

- Extended Connectivity：HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C® 10Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Support OC
AMD
Memories Type Support
DDR5
Number of M.2 Support
4
Series Motherboard
B
MODEL SERIES
AORUS
MANUFACTURER
Gigabyte
COLOR
Black
CPU SOCKET
AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Chipset
AMD B650
M.2 Slots
4
SATA PORTS
4
RAM SLOTS
4 x DDR5 DIMM sockets supporting up to 256 GB
PCIE Slot
1 x PCI Express x16 slot
Audio
2 x audio jacks
Wi-fi & Bluetooth
YES
USB PORTS
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel
