- Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
- Unparalleled Performance：Twin 12*+1+1 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & M.2 SSD Performance
- EZ-Latch Plus：M.2 Connectors with Quick Release & Screwless Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax

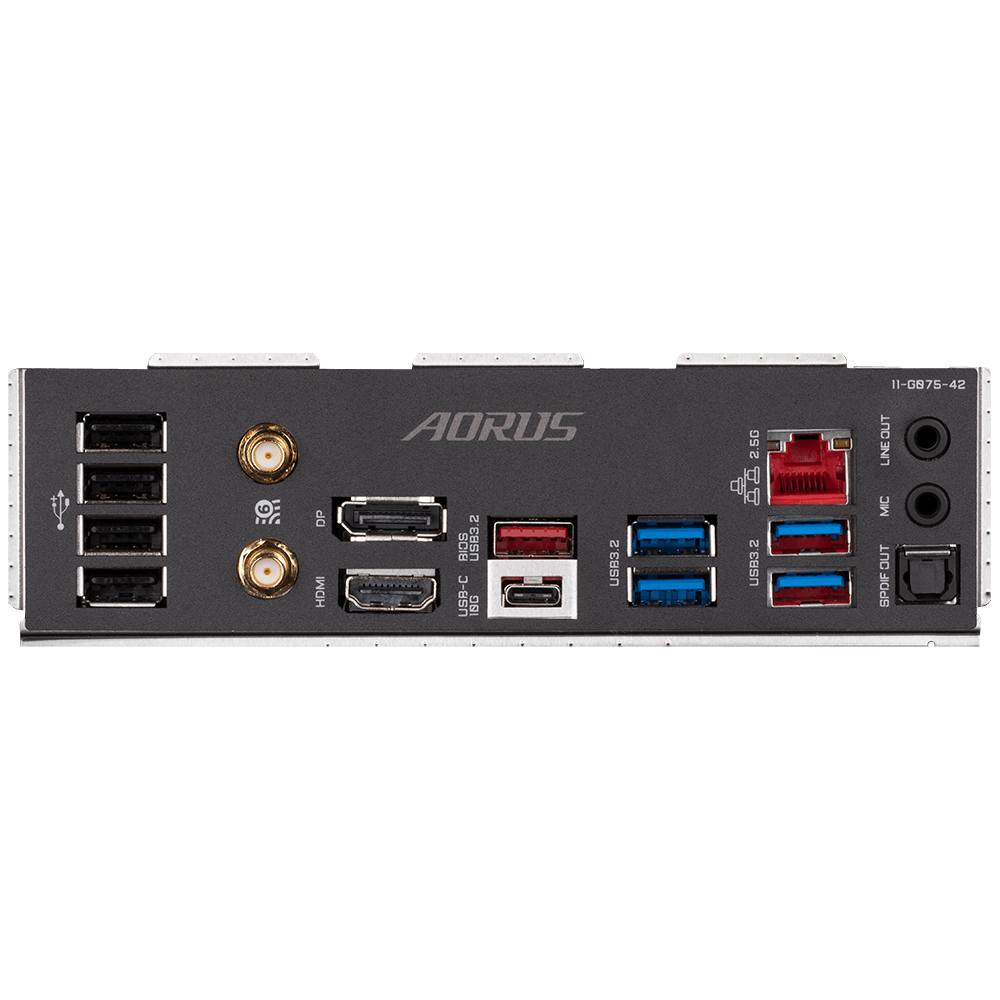

- Extended Connectivity：Rear and Front USB-C® 10Gb/s, DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Support OC
Intel
Memories Type Support
DDR5
Number of M.2 Support
3
Series Motherboard
B
MODEL SERIES
B760 AORUS ELITE AX
MANUFACTURER
GIGABYTE
COLOR
black
CPU SOCKET
Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Chipset
Intel B760
SATA PORTS
4 x SATA 6Gb/s connectors
RAM SLOTS
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
PCIE Slot
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) / 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
PCIE GEN
PCIe 4.0
Audio
2 x audio jacks
USB PORTS
1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports
Wi-Fi
Intel Wi-Fi 6E AX211
BLUETOOTH
Bluetooth 5.3
