- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 8+2+1 Phases Digital VRM Solution
- Dual Channel DDR4：4*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks：GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity：Rear USB-C® 20Gb/s, DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Support OC
Intel
Memories Type Support
DDR4
Number of M.2 Support
2
Series Motherboard
B
MODEL SERIES

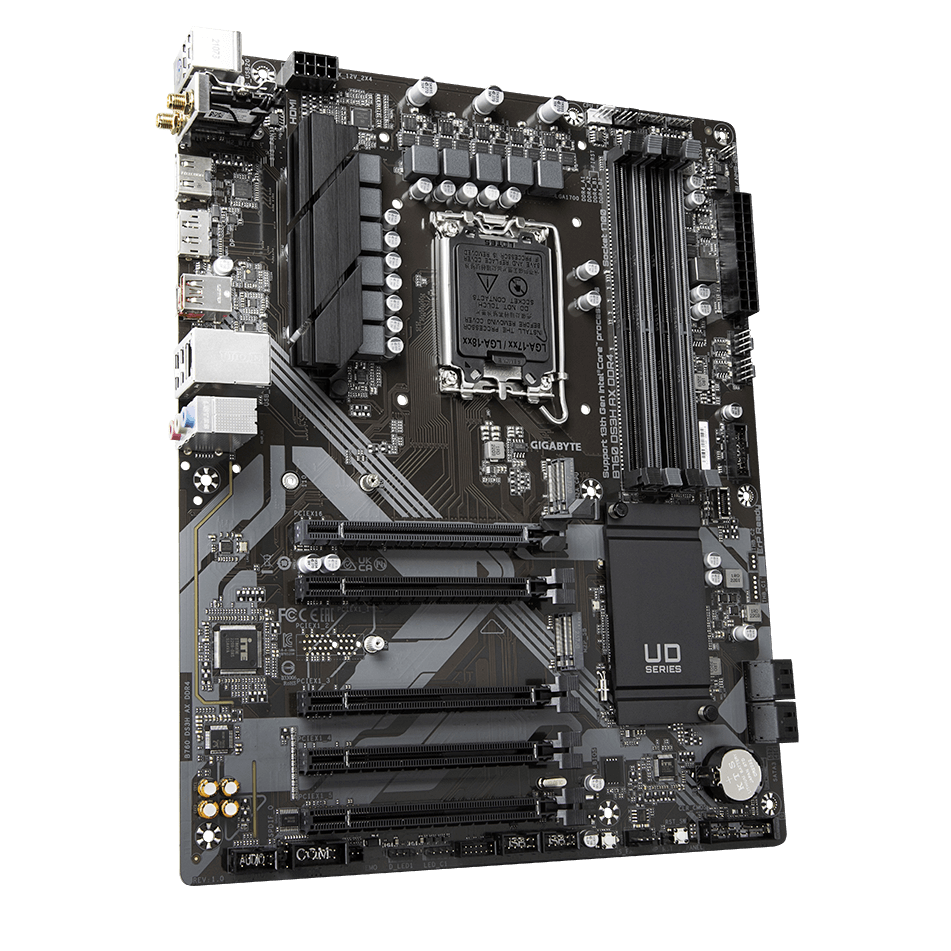

B760 DS3H AX DDR4 (rev. 1.0)
MANUFACTURER
GIGABYTE
ATX
Processor Socket
LGA1700
Chipset
Intel® B760 Express Chipset
SATA PORTS
4 x SATA 6Gb/s connectors
RAM SLOTS
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
PCIE Slot
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
PCIE GEN
PCIE 4
USB PORTS
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 2.0/1.1 ports
Audio
3 x audio jacks
Wi-Fi
AMD Wi-Fi 6E RZ608
