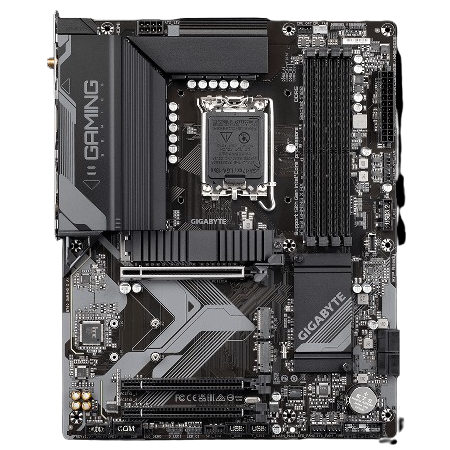

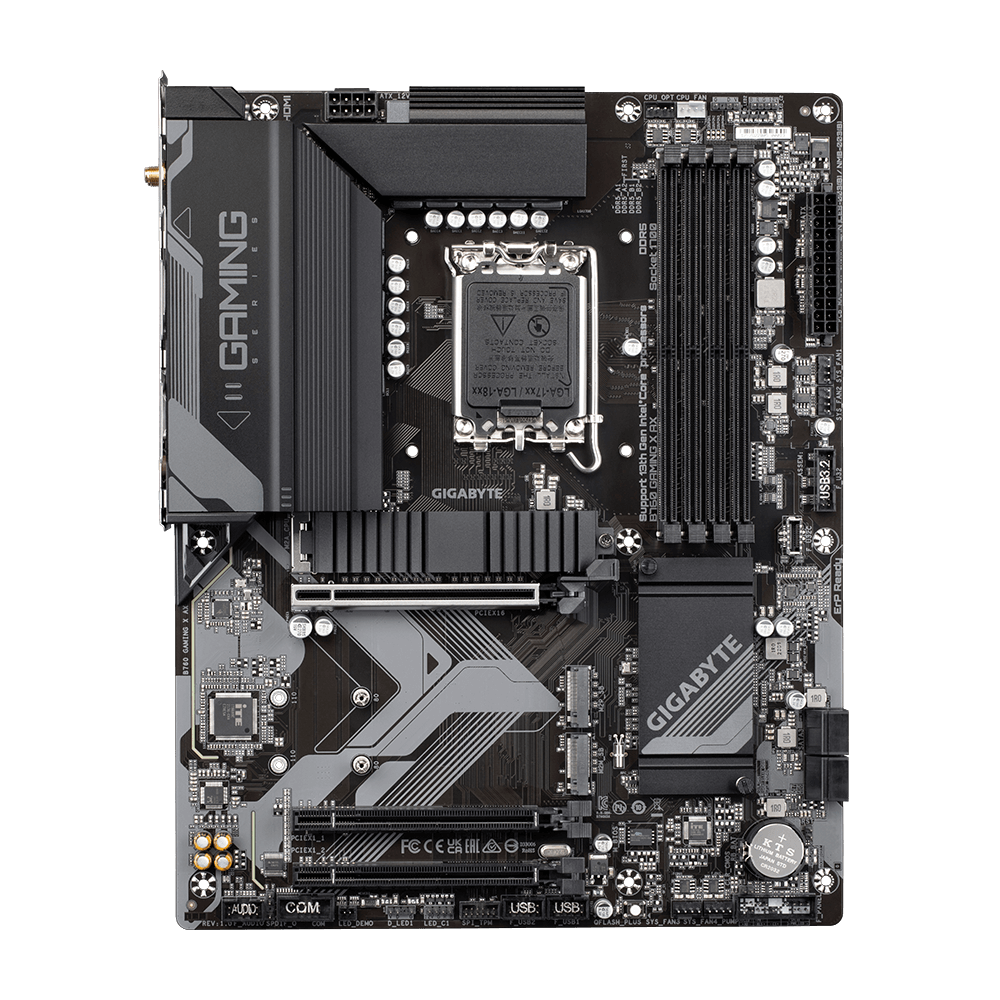

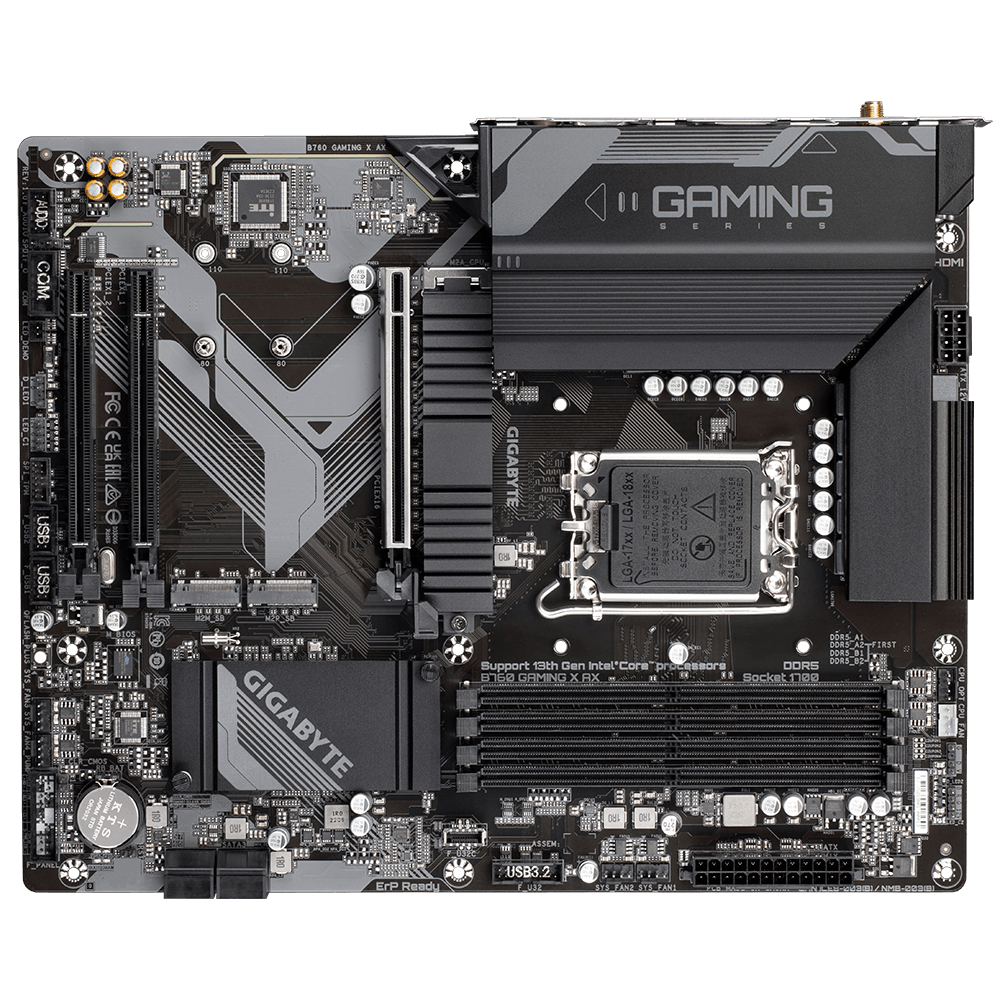

B760 GAMING X AX
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 8+1+1 Phases Digital VRM Solution
- Dual Channel DDR5：4*DIMMs XMP Memory Module Support
- Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & M.2 SSD Performance
- EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax

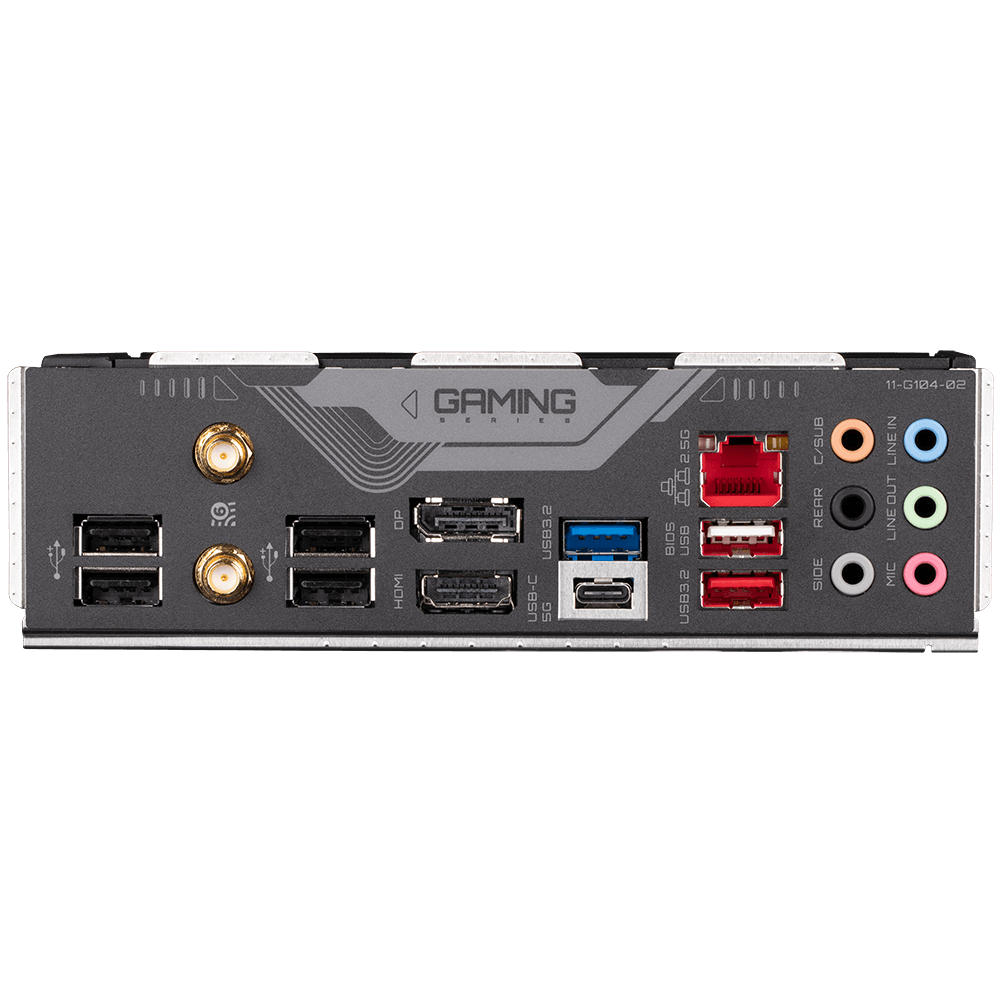

- Extended Connectivity：Front USB-C® 10Gb/s, DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Support OC
Intel
Memories Type Support
DDR5
Number of M.2 Support
3
Series Motherboard
B
MODEL SERIES
B760 GAMING X AX
MANUFACTURER
GIGABYTE
CPU SOCKET
LGA 1700 Support for the 14th, 13th, and 12th Generation Intel® Core
Chipset
Intel B760
M.2 Slots
3
SATA PORTS
4 x SATA 6Gb/s
RAM SLOTS
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture
PCIE Slot
CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
PCIE GEN
4.0
Wi-Fi
yes - AMD Wi-Fi 6E RZ608
BLUETOOTH
BLUETOOTH 5.2
