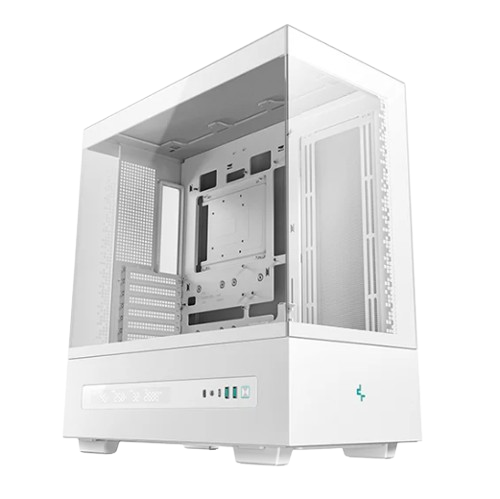

The CH690 DIGITAL WH is designed with beauty and adaptability in mind, featuring a semi-glass panel that offers an expansive view of installed components. For those seeking enhanced performance, the rear of the case supports DIY modifications, allowing users to replace the semi-glass panel with a mesh panel and fan bracket to boost horizontal airflow. Additionally, the integrated light strip slot enables the addition of light strips to create an immersive gaming atmosphere, blending aesthetics with functionality for a truly personalized setup.
Cooler Type Support
Both Cooler
Air Cooler Height Support
182
Radiator Size Values
360/
240/
120/
280/
140/
420/
Built in Fans Number
0
Fans Number Support
10
MODEL SERIES
CH690 DIGITAL
MANUFACTURER
Deepcool
COLOR
White
Motherboard Support
Mini-ITX / Micro-ATX / ATX ATX(Rear Connector)/Micro-ATX(Rear Connector)
Built in fans No.
0
Fans Number Support
10
Fan Options
Front:NA Top:3×120 / 3×140mm Side:3×120 / 3×140mm PSU Shrouded :3×120 / 3×140mm Rear: 1×120 / 1×140mm
HDD 3.5" Storage
1
SSD 2.5" storage
2+1
Expansion Slots
8Slots
Number of USB 3.0
2
Number of USB C
1
Headphone/Microphone
1
Glass
Side & front
Weight
9.8Kg
DIMENSIONS
481×240×516mm(L×W×H)
