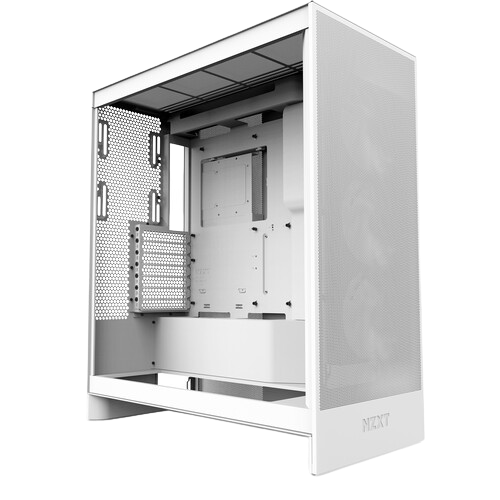

The H7 Flow revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.
- Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.
- Comes equipped with three front-mounted 120mm fans for exceptional out-of-the-box cooling.
- High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
- Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.
- Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
- Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
- Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
- Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
Cooler Type Support
Both Cooler
Air Cooler Height Support
185
Radiator Size Values
360/
240/
120/
280/
140/
420/
Built in Fans Number
3
Fans Number Support
7
MODEL SERIES
H7 Flow
Motherboard Support
Mid-Tower
MANUFACTURER
NZXT
COLOR
All White
Fan Options
Front 3x 120/140 mm Top 3x 120 mm or 2x 140 mm Rear 1x 120/140 mm
Built in fans No.
(3 x F120Q included)
Fans Number Support
7
HDD 3.5" Storage
2
SSD 2.5" storage
2+2
Expansion Slots
7
Number of USB 3.0
2
Number of USB C
1
Headphone/Microphone
1
Glass
Ultra-Clear Tempered Glass (White)
Weight
11.13 kg
DIMENSIONS
Height (with feet):544 mm Width:244 mm Depth:468 mm
