Key Feature
- Supports 11th and 10th Gen Intel® Core™ Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Intel® Optane™ Memory Ready
- Direct 16+1 Phases Digital VRM Solution with 90A Smart Power Stage
- Shielded Memory Routing for Better Memory Overclocking
- NanoCarbon Fins-Array II Heatsink and Direct Touch Heatpipe II
- Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
- AMP-UP Audio with ALC4080 and WIMA for Rear 120dB SNR
- Blazing Fast Intel® 2.5GbE LAN with cFosSpeed
- Triple Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guards II
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Support OC
Intel
Memories Type Support
DDR4
Number of M.2 Support
2
Series Motherboard
Z
MODEL SERIES

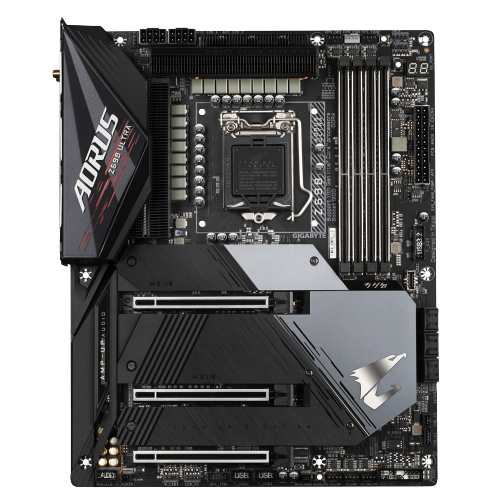

Z590 AORUS ULTRA
MANUFACTURER
Gigabyte
ATX
Processor Socket
LGA 1200
Chipset
Intel Z590
SATA PORTS
6 x SATA 6Gb/s
RAM SLOTS
4x288pin (DDR4)
PCIE Slot
1 x PCI Express x16 slot
PCIE GEN
Intel 10TH and 11 TH gen
USB PORTS
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB headers
Audio
5 x Audio jacks
Wi-fi & Bluetooth
YES
