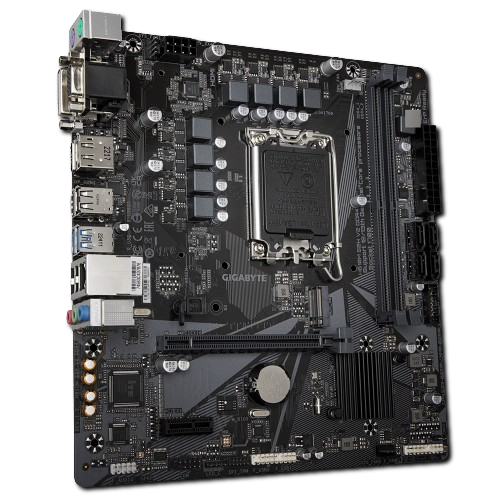

- Supports Intel® Core™ 14th/ 13th /12th processors
- Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
- 4+1+1 Hybrid Digital VRM Design
- GbE LAN with Bandwidth Management
- NVMe PCIe 3.0 x4 M.2
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
Support OC
Intel
Memories Type Support
DDR5
Number of M.2 Support
1
Series Motherboard
H
MODEL SERIES
H610M H V2
MANUFACTURER
Gigabyte
CPU SOCKET
LGA1700 socket
Chipset
Intel® H610 Express Chipset
COLOR
Black
M.2 Slots
1 x M.2 Socket 3 connector
SATA PORTS
4 x SATA 6Gb/s connectors
RAM SLOTS
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture
USB PORTS
Chipset: - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
