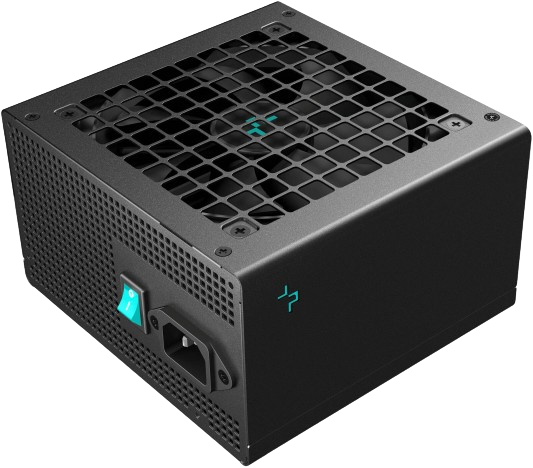

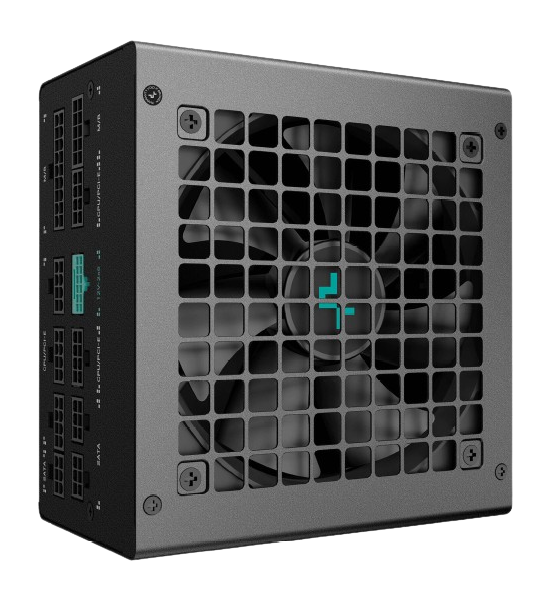

The DeepCool PN750M is a new power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standard. With a dedicated 12V-2x6, 5 EPS/PCIe ports, the PN750M provides stable power for a wide range of modern high-power components.
Power Watt
0
Power Value Support
750
MODEL SERIES
PN750M
MANUFACTURER
DeepCool
COLOR
Black
FANS

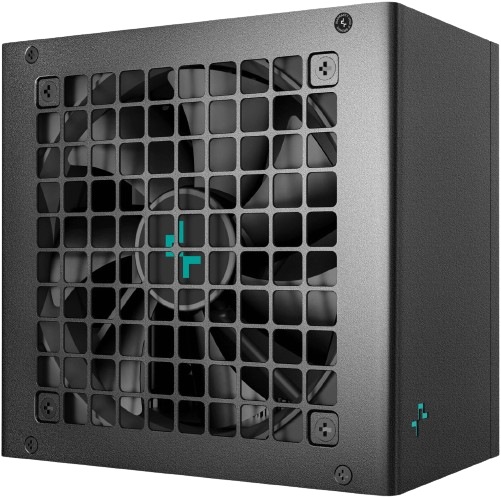

120mm FDB (Fluid Dynamic Bearing)
Connectivity

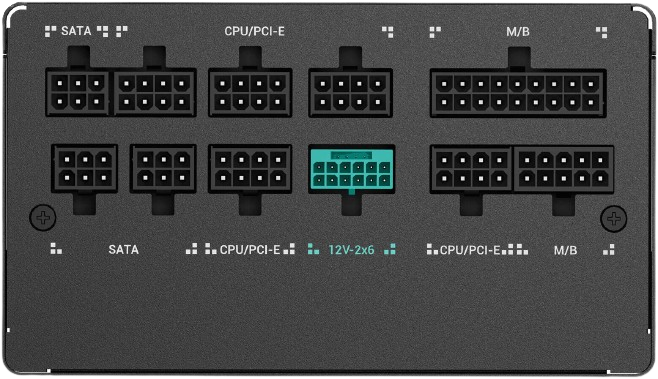

1x 20/24-Pin, 2x 4/8-Pin ATX12V, 1x 16-Pin PCIe 5.1 12V-2x6 (12+4-Pin, entire max.: 600W), 3x 6/8-Pin PCIe, 8x SATA, 2x IDE
SATA count
SATA x 4
Modularity
Fully Modular
EFFICIENCY
80Plus Gold
MTBF
100,000 Hours
DIMENSIONS
150×140×86mm (W x L x H)
