Key Features
- AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000/ 7000 Series Processors
- Digital twin 16+2+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click：M.2 heatsinks with screwless design
- Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage：4*M.2 slots, including 3* PCIe 5.0 x4
- Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L
- Fast Networking：2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI
- Reliable Audio：Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
- Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability.
- PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
Support OC
AMD
Memories Type Support
DDR5
Number of M.2 Support
4
Series Motherboard
Z
MODEL SERIES

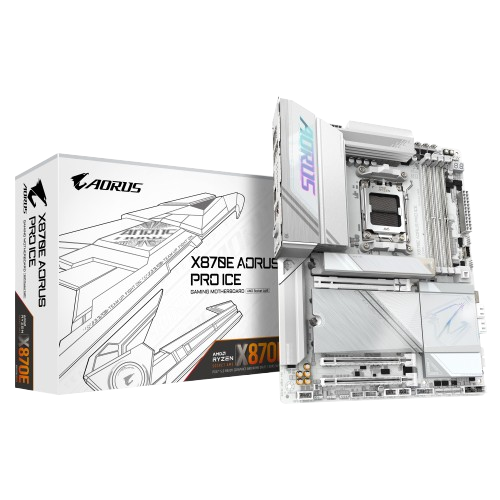

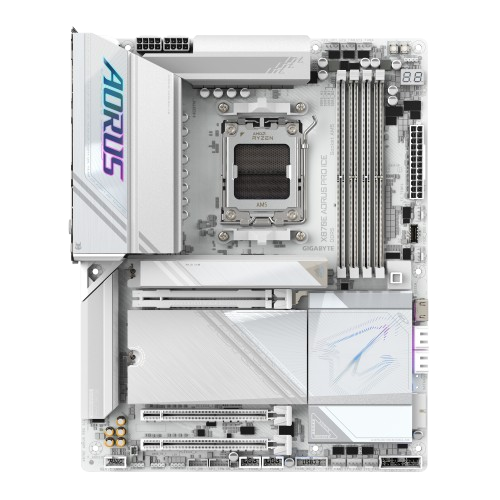

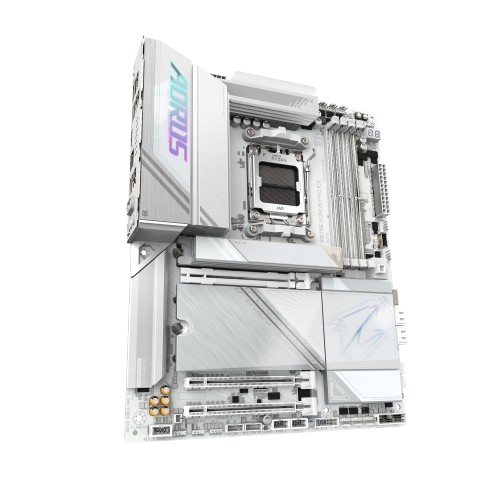

X870E AORUS PRO ICE
MANUFACTURER
Gigabyte
COLOR
White
CPU SOCKET
AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors
Chipset
AMD X870E
RGB
Yes
M.2 Slots
4 x M.2 Socket 3 connectors
SATA PORTS
4 x SATA 6Gb/s connectors
RAM SLOTS
4 x DDR5 DIMM sockets supporting up to 256 GB
PCIE Slot
1x PCI Express x16 slot (PCIEX16)
Audio
2 x audio jacks
Wi-fi & Bluetooth
Qualcomm® Wi-Fi 7 - BLUETOOTH 5.3
USB PORTS

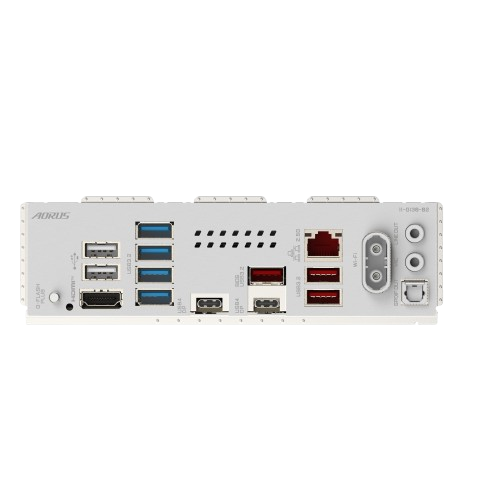

CPU+ASMedia USB4® controller: - 2 x USB4® USB Type-C® ports on the back panel CPU: - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
