Key Features
- Supports Intel® Core™ 14th and 13th processors
- Digital twin 16+1+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with XMP 3.0 memory module support
- PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
- EZ-Latch Click：M.2 heatsinks with screwless design
- EZ-Latch Plus：M.2 slots with quick release design
- UC BIOS：User-Centred intuitive UX with Quick Access function
- Ultra-Fast Storage：4*PCIe 4.0 x4 M.2 slots
- Efficient Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L
- Fast Networking：2.5GbE LAN & Wi-Fi 6E with Ultra-high gain antenna

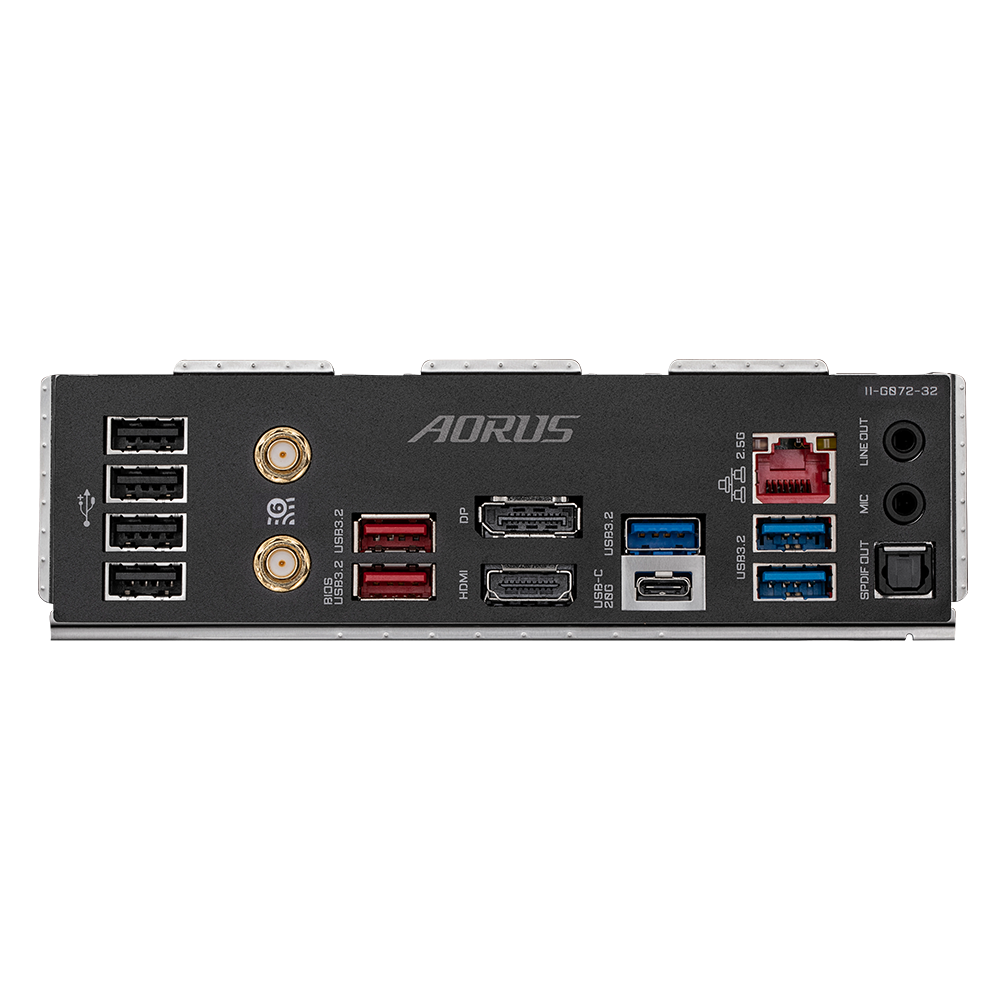

- Extended Connectivity：DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s
- Precision Audio：ALC1220 & Audiophile Grade Capacitors
Support OC
Intel
Memories Type Support
DDR5
Number of M.2 Support
4
Series Motherboard
Z
MODEL SERIES

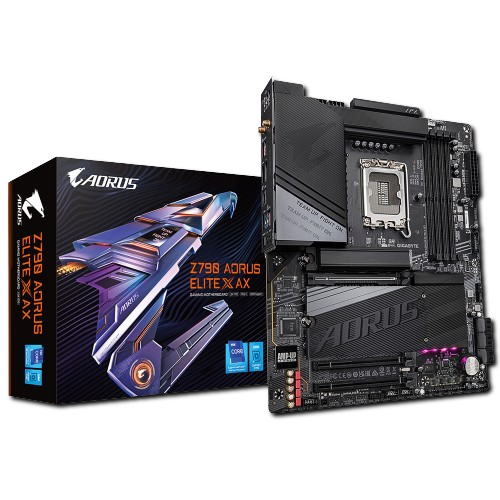

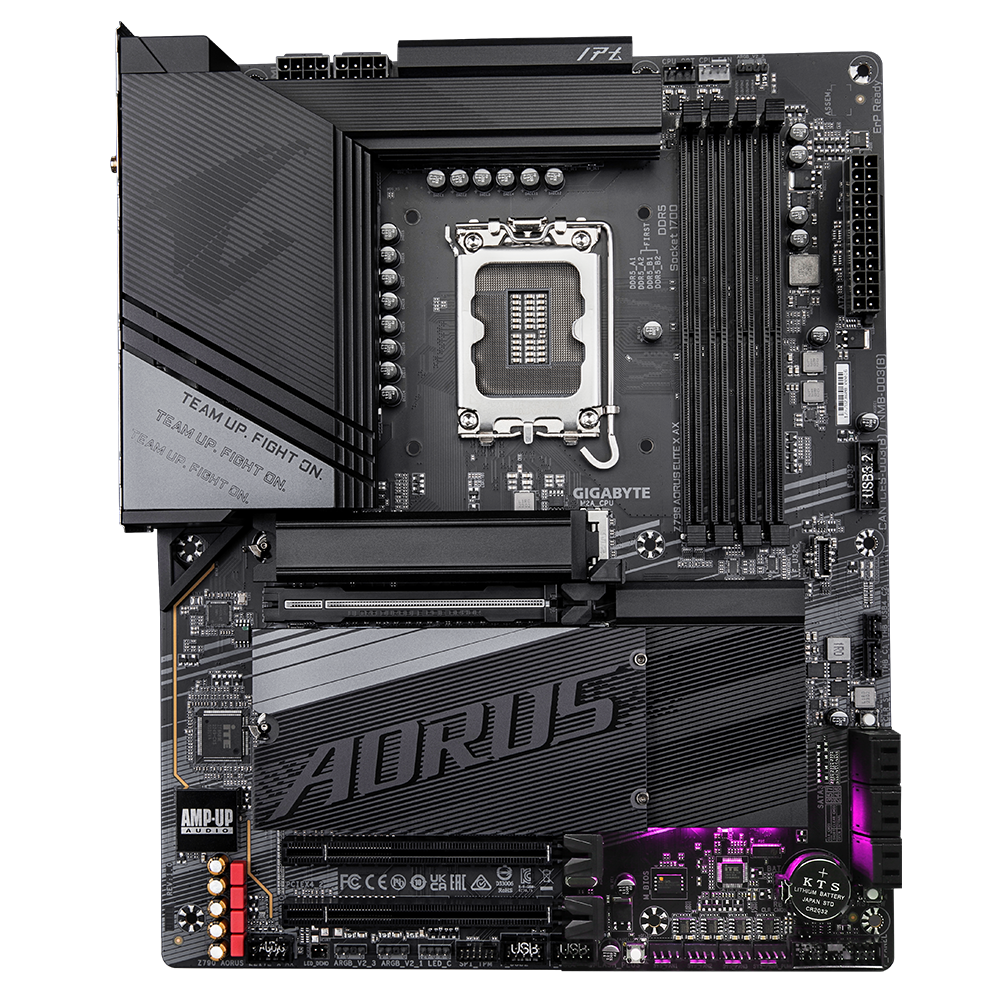

Z790 AORUS ELITE X AX
MANUFACTURER
GIGABYTE
COLOR
BLACK
CPU SOCKET
LGA 1700 Supports Intel® Core™ 14th and 13th processors
Chipset
Intel Z790 Express Chipset
SATA PORTS
6 x SATA 6Gb/s
RAM SLOTS
4 x DDR5 DIMM sockets supporting up to 192 GB
PCIE Slot
PCI Express 5.0 x16 CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. PCI Express 4.0 x16 Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/PCIEX4_2)
PCIE GEN
PCIe 5.0
Audio
Realtek ALC1220-VB CODEC Audio Chipset - 2 x audio jacks
USB PORTS
1 x USB Type-C port, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports
Wi-Fi
Wi-Fi 6E
BLUETOOTH
BLUETOOTH 5.3
