Support OC
Intel
Memories Type Support
DDR4
Number of M.2 Support
3
Series Motherboard
Z
MODEL SERIES

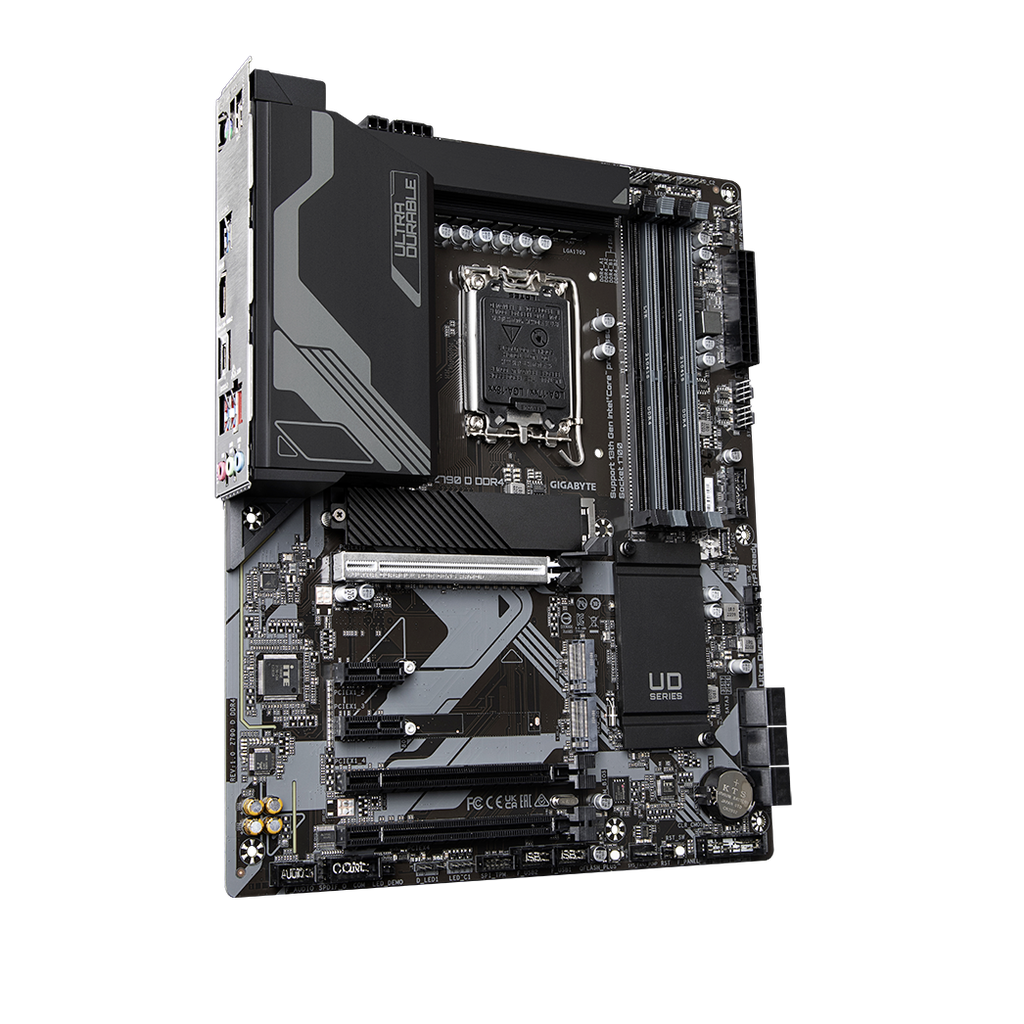

Z790 D DDR4
MANUFACTURER
GIGABYTE
ATX
Processor Socket
LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU
Chipset
Intel® Z790 Express Chipset
SATA PORTS
6 x SATA 6Gb/s connectors
RAM SLOTS
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture
PCIE Slot
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
PCIE GEN
PCIe 4.0
USB PORTS
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Audio
3 x audio jacks
