Key Features
- Supports Intel® Core™ Ultra processors (Series 2)
- VisionLINK/TB : One USB-C® Port for Video, Data Transfer and Charging
- Ultimate Scalibility : 2*PCIe x16 slots for Multi-GPU
- Extended Connectivity : THUNDERBOLT™ 4 Type-C®with DP-Alt, HDMI
- Ultra-Fast Storage : 5*M.2 slots, including 1* PCIe 5.0 x4
- Blazing Fast Networks : Daul 2.5 GbE LAN and Wi-Fi 7 with directional Ultra-high gain antenna
- Digital twin 16+1+2 phases VRM solution
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- D5 Bionic Corsa for Infinite Memory Performance
- AORUS AI SNATCH : Auto-Overclocking Software by AI models
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- Premium Compatibility : 4*DDR5 with XMP Memory Module Support
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L
- High-Res Audio : ALC1220 & WIMA Audiophile Grade Capacitors
- PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
- Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
Support OC
Ultra
Memories Type Support
DDR5
Number of M.2 Support
5
Series Motherboard
Z
MODEL SERIES
Z890 AERO G
MANUFACTURER
Gigabyte
COLOR
White
CPU SOCKET
LGA1851 socket: Support for Intel® Core™ Ultra Processors
Chipset
Intel® Z890 Express Chipset
RGB
Yes
M.2 Slots
5 x M.2 Socket 3 connectors
SATA PORTS
4 x SATA 6Gb/s connectors
RAM SLOTS
4 x DDR5 DIMM sockets supporting up to 256 GB
PCIE Slot
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8)
Audio
2 x audio jacks
Wi-fi & Bluetooth
Wi-Fi 7 - BLUETOOTH 5.4
USB PORTS

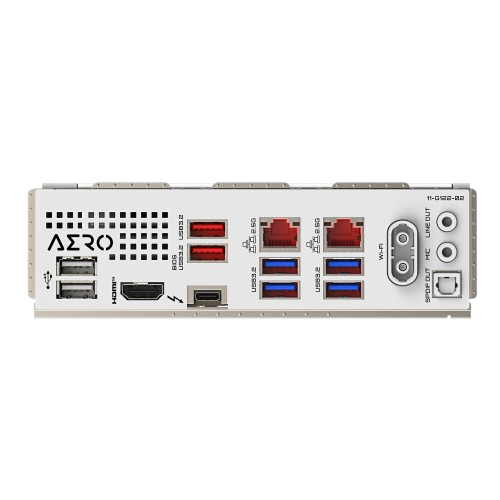

CPU: - 1 x USB4® USB Type-C® port on the back panel Chipset: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
