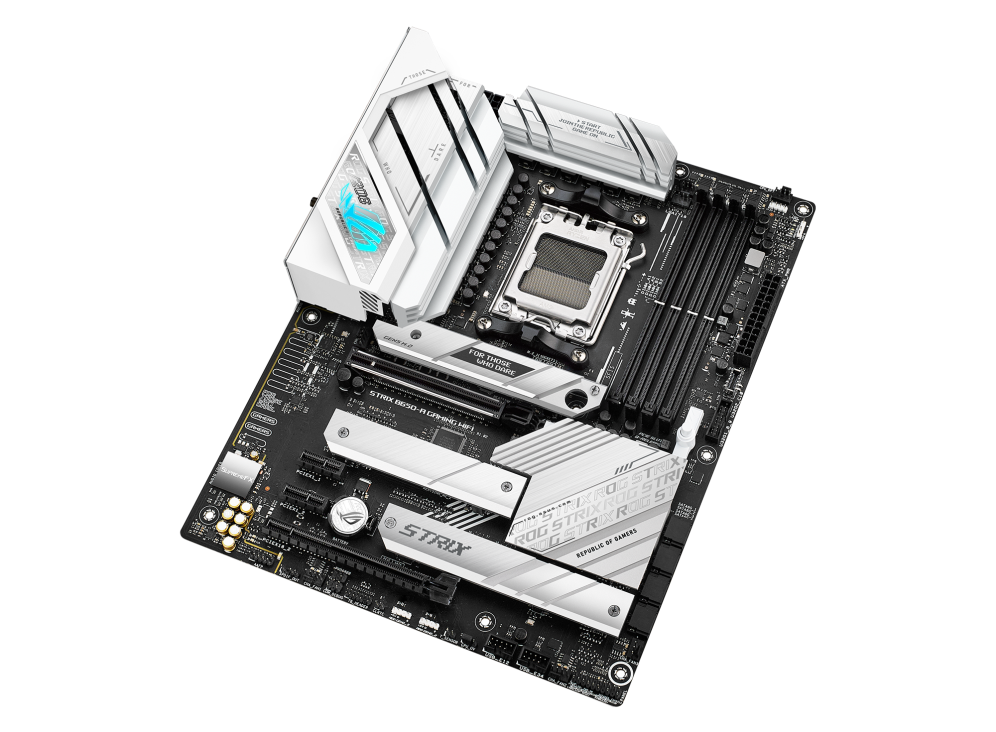

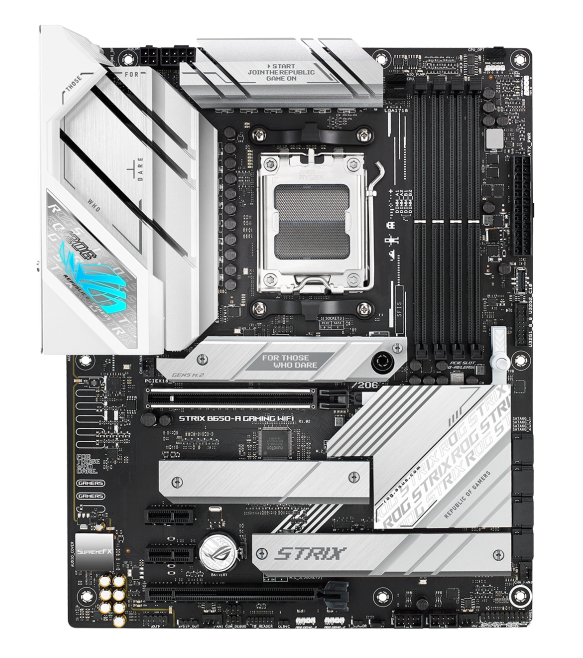

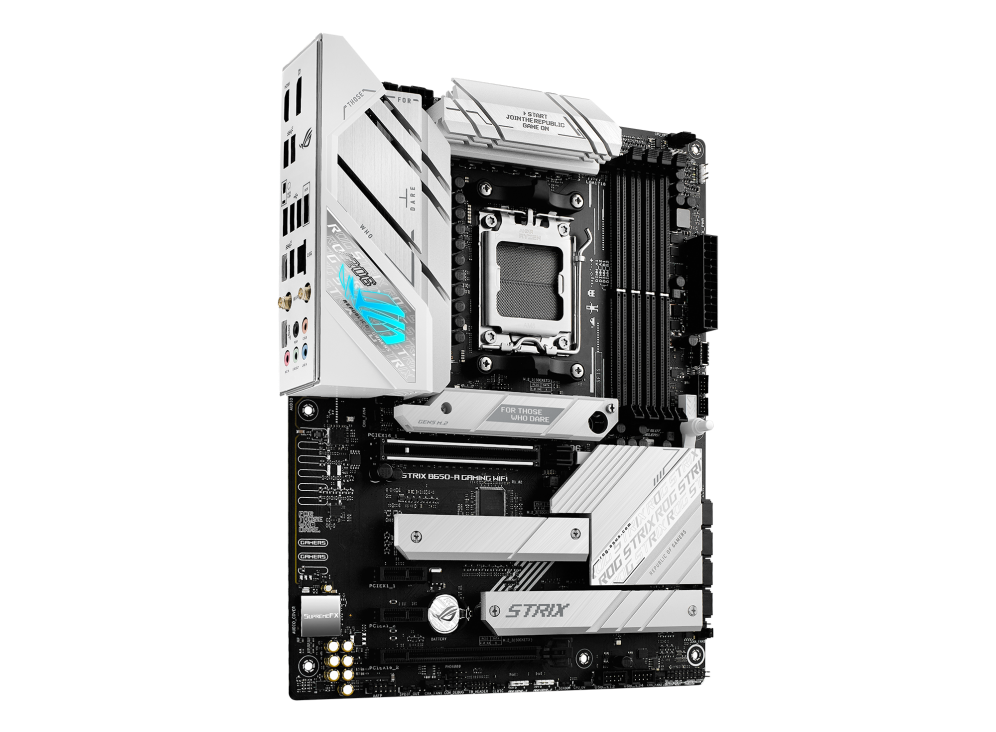

The ROG Strix B650-A Gaming WiFi comes equipped with potent performance and thermal prowess in a fresh-looking package. Robust power delivery designed to handle the latest AMD Ryzen™ 7000 Series processors is cooled with thick metal heatsinks that stand out against a black PCB. A PCIe 5.0 M.2 slot, speedy DDR5 memory support, and the latest WiFi 6E networking fleshes out the futuristic feature set. This platform delivers the power and connectivity that advanced AI PC applications demand.
Support OC
AMD
Memories Type Support
DDR5
Number of M.2 Support
3
Series Motherboard
B
MODEL SERIES
ROG Strix
MANUFACTURER
Asus
COLOR
White 7 Black
CPU SOCKET
AM5 Socket for AMD Ryzen™ 9000& 8000 & 7000 Desktop Processorss*
Chipset
AMD B650
RGB
Yes
M.2 Slots
3 x M.2 slots (Key M)
SATA PORTS
4 x SATA 6Gb/s ports
RAM SLOTS
4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*
PCIE Slot
AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (support x8/x4 mode)* AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)** 2 x PCIe 4.0 x1 slots * Specification vary by CPU types. ** PCIe 4.0 x16 slot (supports x4 mode) from AMD B650 Chipset shares bandwidth with M.2_3.
Audio
5 x Audio jacks
Wi-fi & Bluetooth
Wi-Fi 6E - Bluetooth v5.2

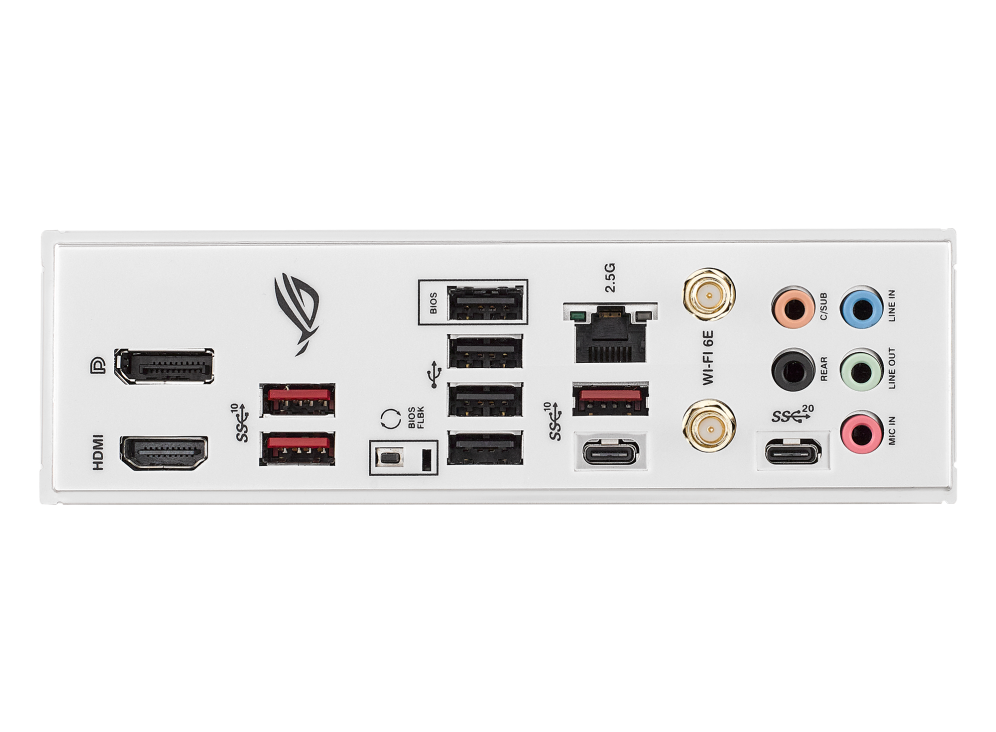

USB PORTS
Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers supports additional 4 USB 2.0 ports
