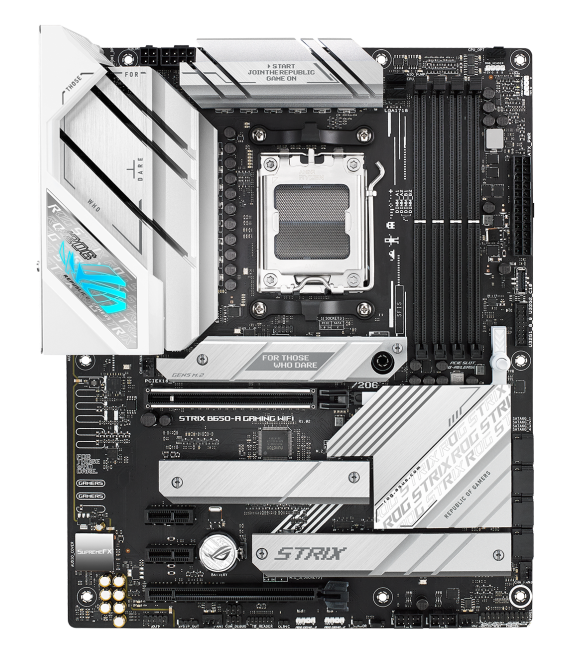

The ROG Strix B650-A Gaming WiFi comes equipped with potent performance and thermal prowess in a fresh-looking package. Robust power delivery designed to handle the latest AMD Ryzen™ 7000 Series processors is cooled with thick metal heatsinks that stand out against a black PCB. A PCIe 5.0 M.2 slot, speedy DDR5 memory support, and the latest WiFi 6E networking fleshes out the futuristic feature set. This platform delivers the power and connectivity that advanced AI PC applications demand.
Support OC
AMD
Memories Type Support
DDR5
Number of M.2 Support
3
Series Motherboard
B
موديل المنتج
ROG Strix
المصنع
Asus
اللون
White 7 Black
قاعدة المعالج
AM5 Socket for AMD Ryzen™ 9000& 8000 & 7000 Desktop Processorss*
نوع الشريحة
AMD B650
آر جي بي
Yes
منافذ M.2
3 x M.2 slots (Key M)
منافذ ساتا
4 x SATA 6Gb/s ports
منافذ الذاكرة العشوائية
4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*
منفذ PCIE
AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (support x8/x4 mode)* AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)** 2 x PCIe 4.0 x1 slots * Specification vary by CPU types. ** PCIe 4.0 x16 slot (supports x4 mode) from AMD B650 Chipset shares bandwidth with M.2_3.
منافذ الصوت
5 x Audio jacks
واي فاي وبلوتوث
Wi-Fi 6E - Bluetooth v5.2
منافذ يو إس بي
Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers supports additional 4 USB 2.0 ports
