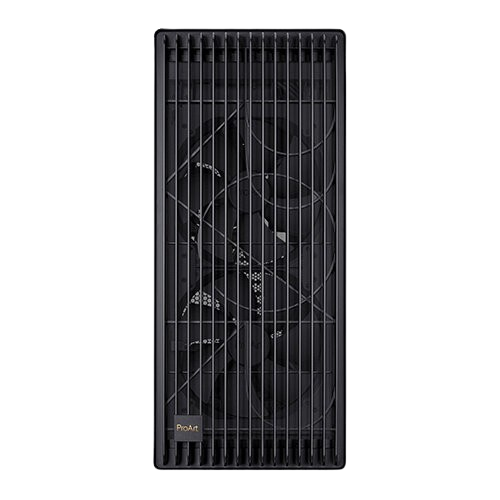

- Superior Airflow: 15.5 mm front panel grill with 45% porosity, two extra-thick 200 x 38 mm front fans for maximum air intake, and a 140 mm rear exhaust fan
- Superior Thermals: Two deflectors send incoming air towards the motherboard and other internal components to optimize temperatures
- Ample Space: Supports one 420 mm radiator for AIO cooling or custom liquid-cooling loops and the most robust graphics card get ample room for horizontal or vertical mounting

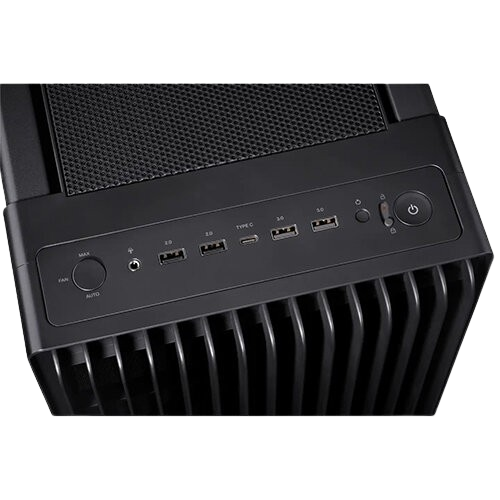

- Extensive I/O: Power Lock Latch and 2-section PWM control; USB Type-C 20Gbps port
- Front Panel IR Dust Indicator: Timely reminders to clean the filter to maintain top-tier airflow
- Creator-Friendly Design: Tool-less graphics card mounting, integrated graphics card holder and built-in fan hub come together to amp up the building experience
- Elegant aesthetics: Minimalist case adorned with ProArt themed design
Cooler Type Support
Both Cooler
Air Cooler Height Support
190
Radiator Size Values
360/
240/
120/
280/
140/
420/
Built in Fans Number
3
Fans Number Support
6
MODEL SERIES
ProArt
Motherboard Support
EATX (12"x10.9") ATX Micro-ATX Mini-ITX DTX Mini-DTX
MANUFACTURER
Asus
COLOR
Black
Built in fans No.
Pre-installed Fans (Front) 2 x 200 mm Pre-installed Fans (Rear) 1 x 140 mm PWM
Fans Number Support
Cooling Support (Front) 2 x 200 mm Cooling Support (Top) 3 x 120 mm 3 x 140 mm Cooling Support (Rear) 1 x 120 mm 1 x 140 mm
HDD 3.5" Storage
4 x 2.5"/3.5" Combo Bay
SSD 2.5" storage
4 x 2.5" Bay
Expansion Slots
8 2 (additional vertical)
Number of USB 3.0
2 x USB 3.2 Gen1
Number of USB C
1 x USB 3.2 Gen 2x2 Type C
Audio
Yes
FAN CONTROL
Fan Control Button
Glass
Side
Weight
15.8 kg
DIMENSIONS
593 x 560 x 245 mm
