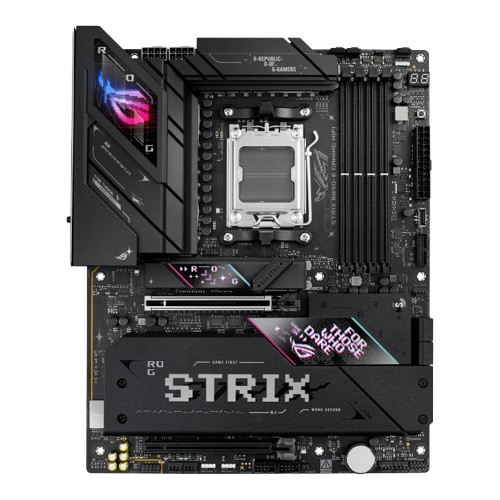

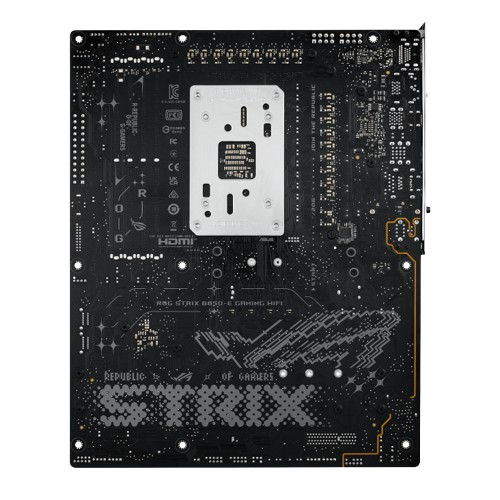

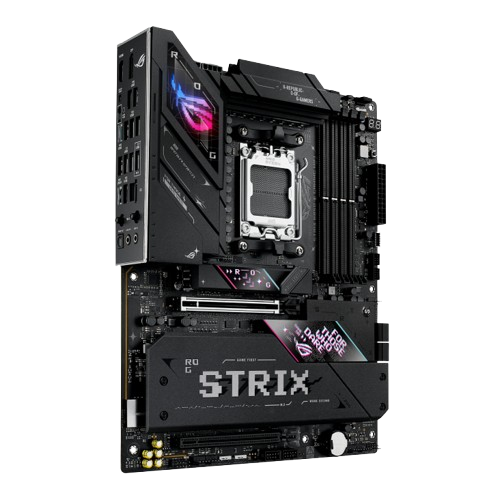

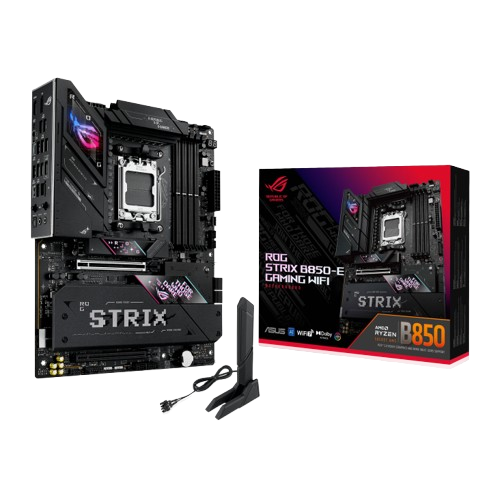

The ROG Strix B850-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen™ 9000 Series processors. Featuring PCIe® 5.0 support, AI Overclocking, AI Networking II, and AEMP, setup is streamlined while performance is maximized. One USB4® Type-C port and WiFi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads. This motherboard not only meets the demands of gaming and professional applications but also delivers the power and connectivity essential for advanced AI PC applications.
AI OVERCLOCKINGEffortless performance boost
AI Networking II
ROBUST POWER SOLUTION16 + 2 + 2 power solution rated for up to 90A per stage
WIFI 7
USB 4One USB4 Type-C® port
GEN 5 SUPPORTX3 Onboard M.2 Slot
DDR5Max. 256GB,
AEMP
DIY-FRIENDLY DESIGN
Support OC
AMD
Memories Type Support
DDR5
Number of M.2 Support
5
Series Motherboard
B
موديل المنتج
ROG STRIX
المصنع
ASUS
اللون
Black
قاعدة المعالج
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
نوع الشريحة
AMD B850 Chipset
آر جي بي
Yes
منافذ M.2
5
منافذ ساتا
4 x SATA 6Gb/s ports
منافذ الذاكرة العشوائية
4 x DIMM slots, max. 256GB, DDR5
منفذ PCIE
AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot with Q-Release Slim (supports x16 or x8 modes)** AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8 or x4 mode)*** AMD B850 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)
منافذ الصوت
2 x Gold-plated audio jacks
واي فاي وبلوتوث
Wi-Fi 7 - Bluetooth® v5.4
منافذ يو إس بي
Rear USB (Total 12 ports) 1 x USB4® (40Gbps) port(1 x USB Type-C®)* 1 x USB 20Gbps port (supports USB Type-C® with up to 30W PD/PPS Fast-charge)** 6 x USB 10Gbps ports (6 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 10Gbps connector (1 x USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
