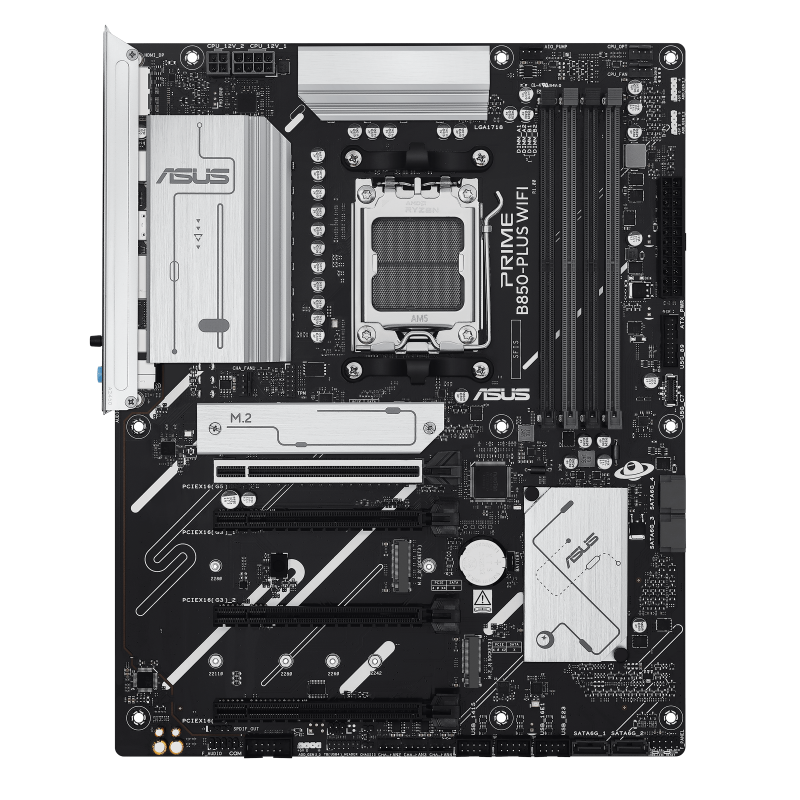

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B850-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Support OC
AMD
Memories Type Support
DDR5
Number of M.2 Support
3
Series Motherboard
B
موديل المنتج
PRIME
المصنع
Asus
اللون
Black &
قاعدة المعالج
AMD Socket AM5
نوع الشريحة
AMD B850 Chipset
منافذ M.2
Supports 3 x M.2 slots
منافذ ساتا
4 x SATA 6Gb/s ports
منافذ الذاكرة العشوائية
4 x DIMM slots, max. 256GB, DDR5
منفذ PCIE
AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B850 Chipset 1 x PCIe 4.0 x16 slot (support x4 mode) 2 x PCIe 3.0 x16 slots (support x1 mode)*** * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** Specifications vary by CPU types. *** The PCIEX16(G3)_1/2 share bandwidth with SATA6G_1/2. The SATA6G_1/2 will be disabled when The PCIEX16(G3)_1 or PCIEX16(G3)_2 runs.
منافذ الصوت
3 x Audio jacks
واي فاي وبلوتوث

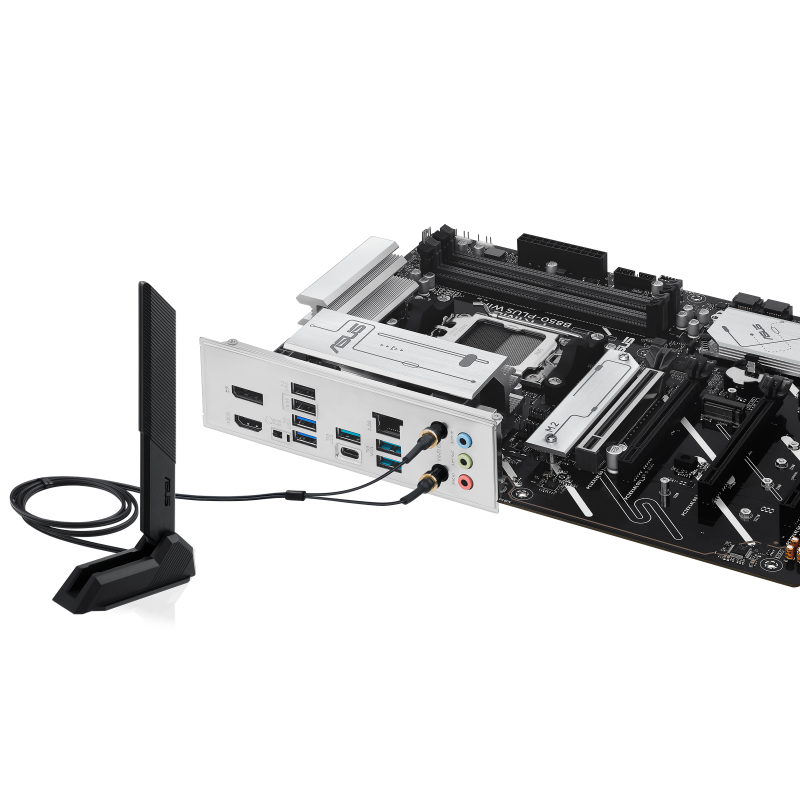

Wi-Fi 6E - Bluetooth® v5.3**
منافذ يو إس بي

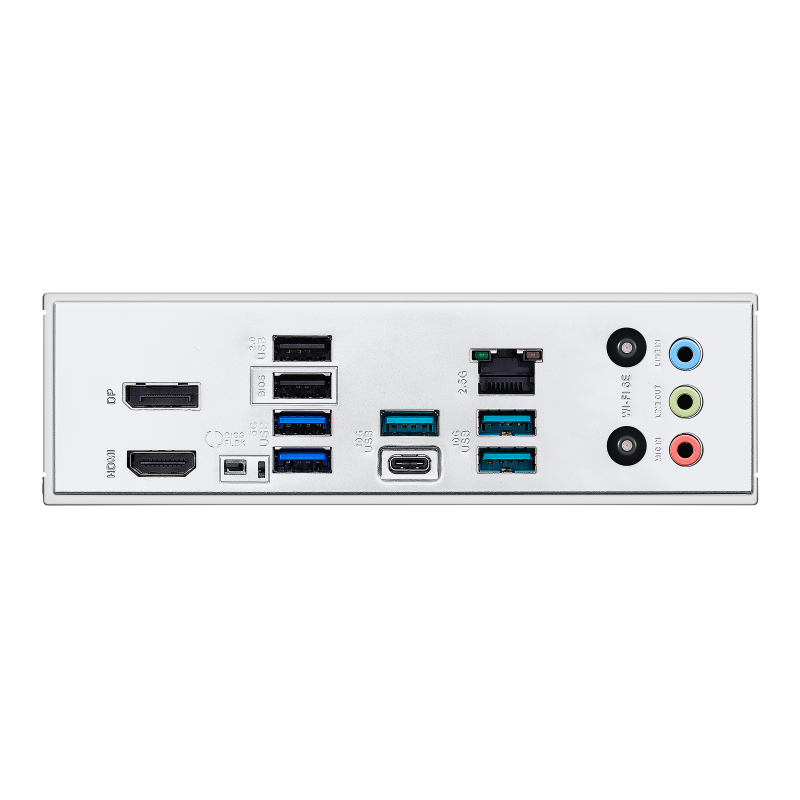

Rear USB (Total 8 ports) 4 x USB 10Gbps port(s) (3 x Type-A + 1 x USB Type-C®) 2 x USB 5Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 9 ports) 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A
