Overview

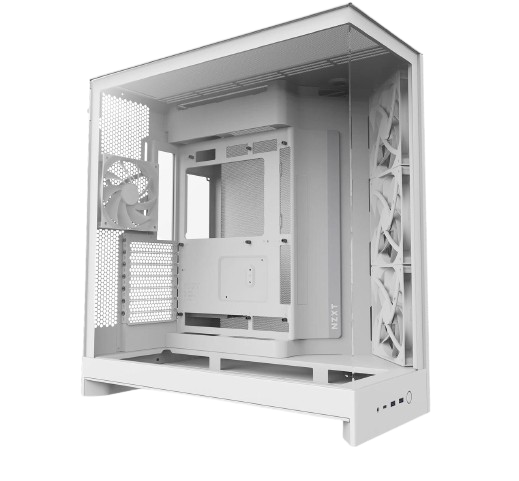

The H9 Flow is a spacious mid-tower ATX case built for high-performance builds, balancing airflow and aesthetics. Its dual-chamber design improves cooling and cable management, while perforated panels, angled fans, and ample fan and radiator support deliver optimal thermal performance.
- Dual-Chamber Design: Separates main components from the PSU and drives for improved thermal performance and cable management.
- Optimized Airflow: Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds.
- Pre-Installed Fans: Includes three F140Q (CV) fans in the front-right and one F120Q (CV) fan in the rear. CV = Case Version (3-pin DC)
- Ten-Fan Capacity: Supports up to nine 140mm fans across the top, front-right, and bottom, plus one 120mm fan in the rear.
- Panoramic View: Showcase every detail of your build with seamless, wraparound tempered glass paneling.
- Large Radiators & GPUs: Fits up to a 420mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards.
- Easy Cable Management: Extra-wide channels, built-in Velcro straps, and tie-down points make cable routing effortless.
- Back-Connect Ready: Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look.
Cooler Type Support
Both Cooler
Air Cooler Height Support
165
Radiator Size Values
360/
240/
120/
280/
140/
420/
Built in Fans Number
4
Fans Number Support
10
موديل المنتج
H9 Flow
المصنع
NZXT
دعم المذربورد
E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX
اللون
White
خيارات المراوح
Front-Right 3 x 120 mm / 3 x 140 mm (3 x F140Q (CV) included) Top 3 x 120 mm / 3 x 140 mm Bottom 3 x 120 mm / 3 x 140 mm Rear 1 x 120 mm (1 x F120Q (CV) included)
عدد المراوح المركبة مسبقا
Front-Right: (3 x F140Q (CV) included) / rear: (1 x F120Q (CV) included)
الحد الأقصى للمراوح
10
وحدة تخزين هاردسك HDD
2
وحدة تخزين هاردسك SSD
4+2
منافذ التوسعة
7 Standard
عدد منافذ اليو إس بي 3.0
2
عدد المنافذ اليو إس بي تايب سي
1
منفذ السماعة/ المايكروفون
1
الزجاج
Panoramic wraparound glass
الوزن
12.46 kg (27.47 lb)
الأبعاد
Height 506 mm (19.9 in) Width 315 mm (12.4 in) Depth 481 mm (18.9 in)
