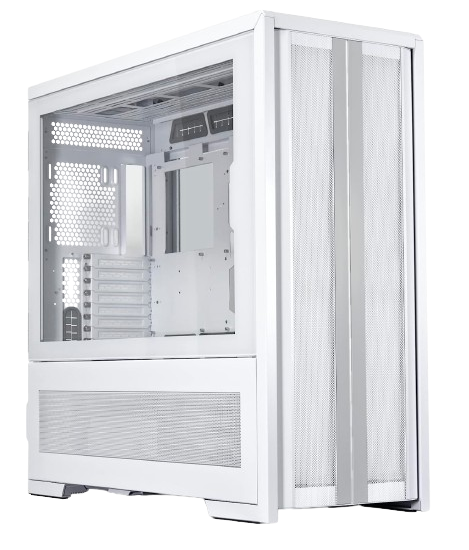

Full tower chassis with 3 modes: Standard/ Rotate/ Dual-System
Capability to support an EEB motherboard and an ITX motherboard
Supports up to 3×480 + 1×360 radiators and a maximum of 16 fans
Two reservoir plates accommodate large D5/ DDC pump
Stores up to 16 storage drives at drive cages and trays
Modular removable brackets offer flexibility for builds
Cable management friendly with 7 Velcro straps

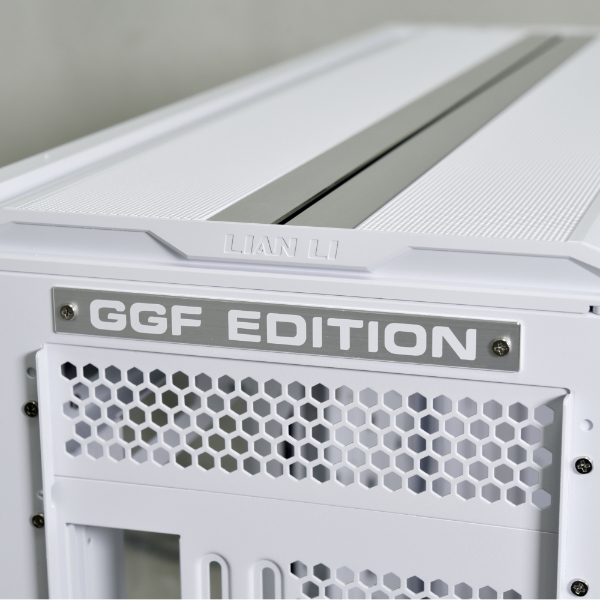

Available in black and white (GGF Edition)
Cooler Type Support
Both Cooler
Air Cooler Height Support
198
Radiator Size Values
360/
240/
120/
280/
140/
480/
Built in Fans Number
0
Fans Number Support
16
MODEL SERIES
V3000 Plus
Motherboard Support
FULL TOWER
MANUFACTURER
Lian Li
COLOR
WHITE
Fan Options
Front：4 x 120mm or 3 x 140mm Top：4 x 120mm or 3 x 140mm or 2 x 200mm Above PSU Chamber：3 x 120mm or 3 x 140mm Bottom side：4 x 120mm or 3 x 140mm Rear: 1 x 120mm or 1 x 140mm
HDD 3.5" Storage
8
SSD 2.5" storage
Drive Cage：8 × 2.5” SSD or 8 × 3.5” HDD Side：4 × 2.5” SSD Behind MB tray: 4 × 2.5” SSD
Expansion Slots
System 1 – 8 System 2 – 3 (at PSU shroud, with optional riser cable)

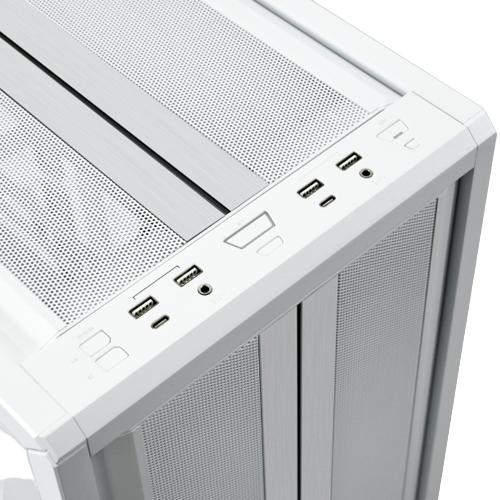

Number of USB 3.0
2
Number of USB C
1
Headphone/Microphone
1
Glass
TWO SIDES Tinted Tempered Glass
DIMENSIONS
(D) 678.5mm x (W) 279mm x (H) 674mm
Built in fans No.
0
Fans Number Support
16
