Take your build from B-tier to S with the Strix B650E-E! PCIe 5.0 and DDR5 propel your rig into the future, and innovative Q-Design features make system setup a breeze. All of its perks are backed by a tenacious power solution, hefty heatsinks, and exclusive overclocking technologies to drive you to the next level with Ryzen 7000.
Support OC
AMD
Memories Type Support
DDR5
Number of M.2 Support
4
Series Motherboard
B
موديل المنتج
ROG STRIX
المصنع
Asus
اللون
Black
قاعدة المعالج
AMD Socket AM5 for AMD Ryzen™ Desktop Processors
نوع الشريحة
AMD B650
آر جي بي
Yes
منافذ M.2
Total supports 4 x M.2 slots
منافذ ساتا
4 x SATA 6Gb/s ports
منافذ الذاكرة العشوائية
4 x DIMM, Max. 192GB, DDR5
منفذ PCIE
AMD Ryzen™ Desktop Processors* 2 x PCIe 5.0 x16 slots (supports x16 & x8/x4 modes) AMD B650 Chipset** 1 x PCIe 4.0 x16 slot (supports x4 mode)
منافذ الصوت
5 x Audio jacks*
واي فاي وبلوتوث
Wi-Fi 6E - Bluetooth v5.2
منافذ يو إس بي

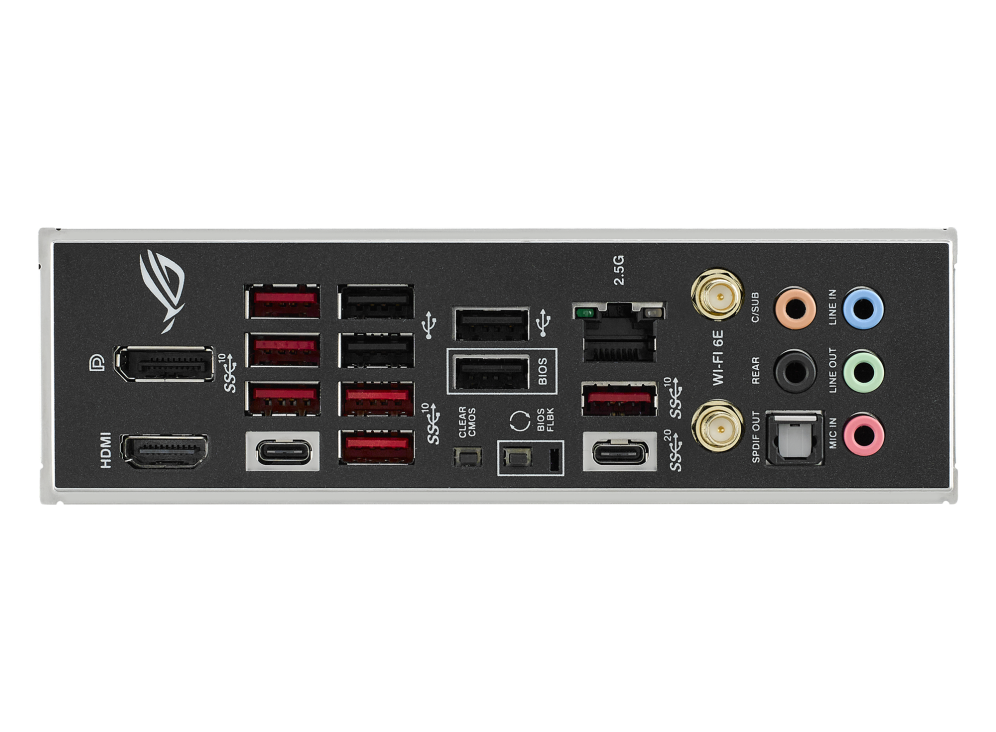

Rear USB (Total 12 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 ports Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
