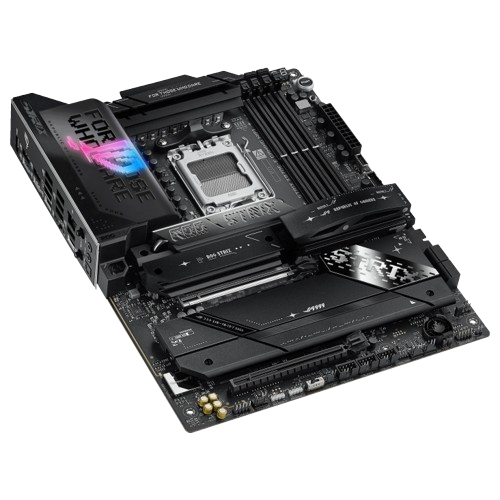

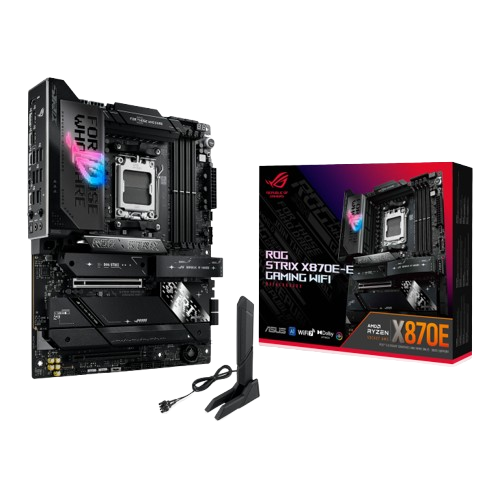

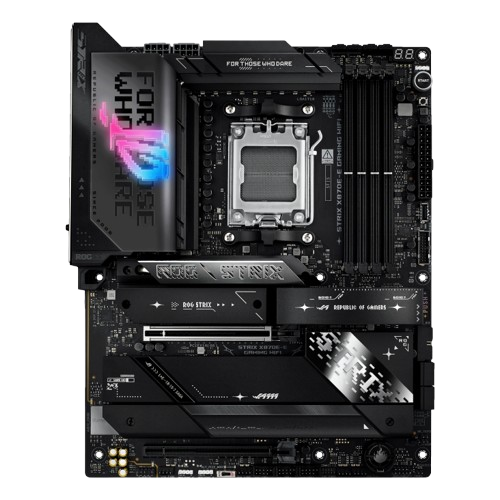

ROG STRIX X870E-E
gaming wifi
The ROG Strix X870E-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen™ 9000 Series processors. Featuring PCIe® 5.0 support, AI Overclocking, AI Cooling II, AI Networking II, and AEMP, setup is streamlined while performance is maximized. Dual USB4® Type-C ports and WiFi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads. This motherboard not only meets the demands of gaming and professional applications but also delivers the power and connectivity essential for advanced AI PC applications.
AI OVERCLOCKINGEffortless performance boost
.AI Cooling IIOne-click fan tuning
AI Networking II
18 + 2 + 2 power solution rated for up to 110A per stage

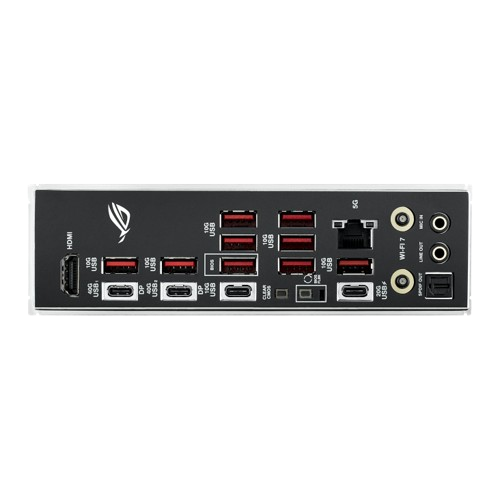

USB 4Dual USB4 Type-C® ports
GEN 5 SUPPORTX3 Onboard M.2 Slot
DDR5Max. 192GB, NitroPath DRAM Technology, AEMP
DIY-FRIENDLY DESIGN
Support OC
AMD
Memories Type Support
DDR5
Number of M.2 Support
5
Series Motherboard
Z
موديل المنتج
ROG STRIX
المصنع
ASUS
اللون
BLACK
قاعدة المعالج
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
نوع الشريحة
AMD X870E
منافذ M.2
5
منافذ ساتا
4
منافذ الذاكرة العشوائية
4 x DIMM slots, max. 192GB, DDR5
منفذ PCIE
Q-Release Slim (with PCIe SafeSlot)
منافذ الصوت
2 x Gold-plated audio jacks
واي فاي وبلوتوث
YES
منافذ يو إس بي
1 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports
