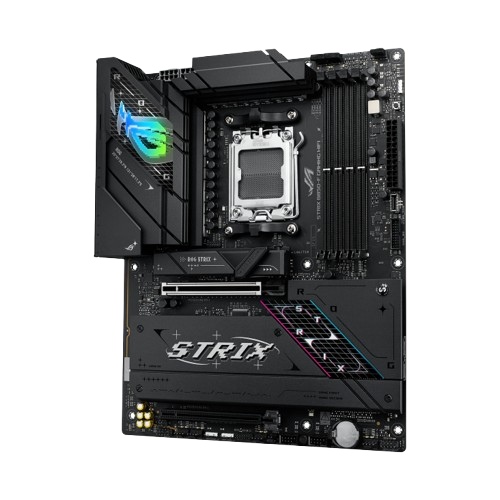

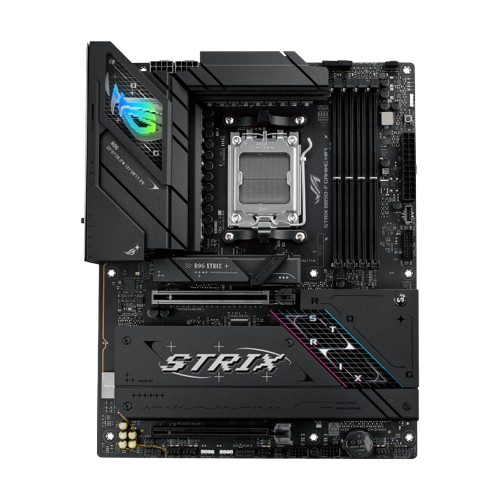

ROG STRIX B850-F
gaming wifi
The ROG Strix B850-F Gaming WiFi is built to dominate with AMD Ryzen™ 9000 Series Desktop Processors. Its advanced power design and AI solutions ensure peak performance. In addition, the total support of 19 USB ports including USB 20Gbps, as well as WIFI 7 and 2.5Gbps ethernet, provides cutting-edge connectivity. This motherboard delivers the power and speed essential for elite gaming and the demands of advanced AI PC applications.
AI Networking II
ROBUST POWER SOLUTION16 + 2 + 2 power solution rated for up to 80A per stage
GEN 5 SUPPORTTwo Onboard M.2 Slots
DDR5Max. 256GB, AEMP
DIY-FRIENDLY DESIGN
Support OC
AMD
Memories Type Support
DDR5
Number of M.2 Support
4
Series Motherboard
B
موديل المنتج
ROG STRIX
المصنع
Asus
اللون
Black
قاعدة المعالج
AM5
نوع الشريحة
AMD B850 Chipset
آر جي بي
Yes
منافذ M.2
Total supports 4 x M.2
منافذ ساتا
2 x SATA 6Gb/s ports
منافذ الذاكرة العشوائية
4 x DIMM slots, max. 256GB, DDR5
منفذ PCIE
AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot with Q-Release Slim AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8 or x4 mode)* AMD B850 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)** * Specifications vary by CPU types. ** PCIEX16(G4) slot (supports x4 mode) from AMD B850 Chipset shares bandwidth with M.2_3
منافذ الصوت
2 x Audio jacks
واي فاي وبلوتوث
Wi-Fi 7 - Bluetooth® v5.4

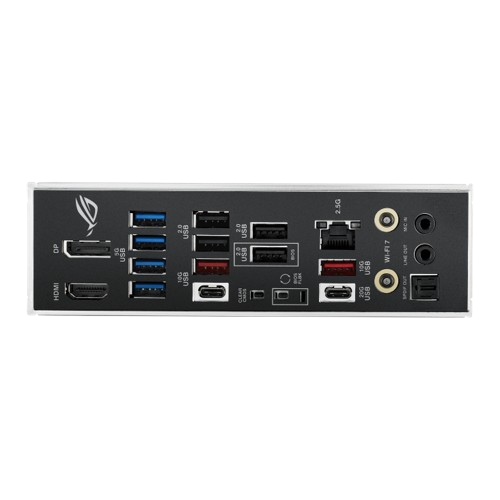

منافذ يو إس بي
Rear USB (Total 12 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A
