Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
Unparalleled Performance：Hybrid 8+2+1 Phases Digital VRM Solution
Dual Channel DDR5：4*DIMMs XMP Memory Module Support
Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
Fast Networks：GbE LAN

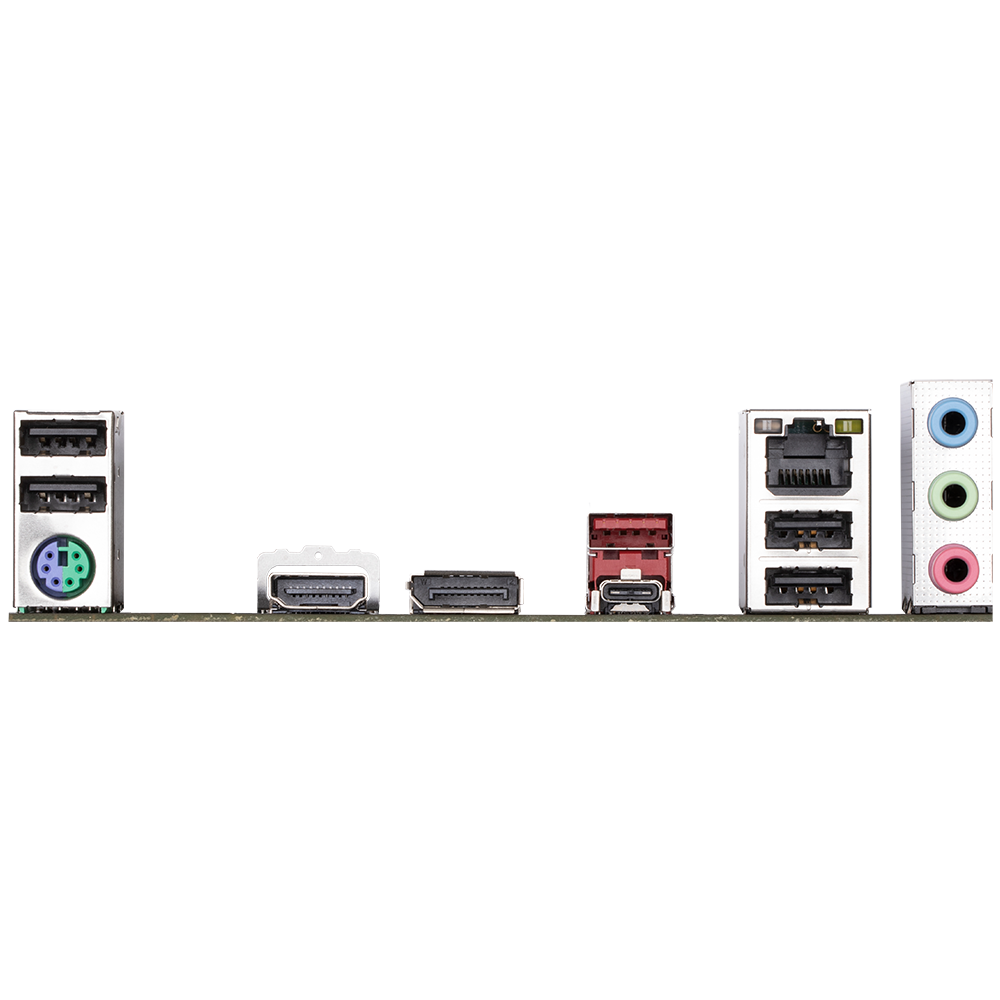

Extended Connectivity：Rear USB-C® 20Gb/s, DP, HDMI
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Support OC
Intel
Memories Type Support
DDR5
Number of M.2 Support
2
Series Motherboard
B
موديل المنتج
DS3H
المصنع
Gigabyte
اللون
BLACK
قاعدة المعالج
LGA1700 socket
نوع الشريحة
Intel® B760 Express Chipset
منافذ ساتا
4 x SATA 6Gb/s connectors
منافذ الذاكرة العشوائية
4 x DDR5 DIMM sockets supporting up to 192 GB
منفذ PCIE
1 x PCI Express x16 slot
جيل PCIE
PCIe 4.0
منافذ الصوت
3 x audio jacks
منافذ يو إس بي
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers
