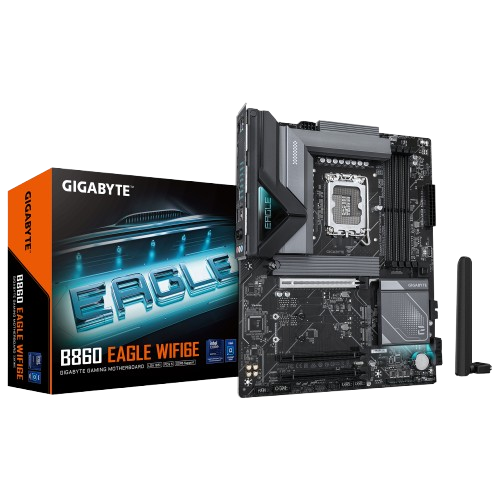

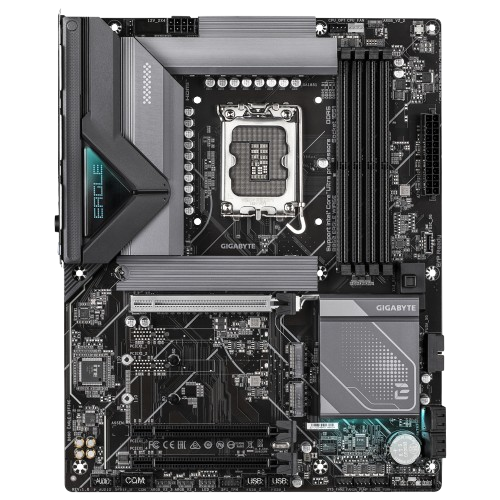

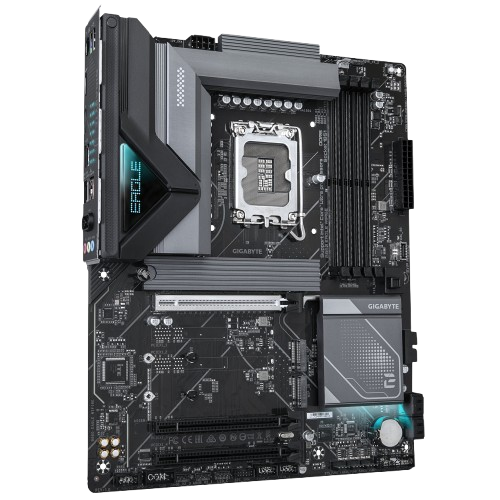

B860 EAGLE WIFI6E
Support OC
Ultra
Memories Type Support
DDR5
Number of M.2 Support
3
Series Motherboard
B
موديل المنتج
EAGLE WIFI6E
المصنع
Gigabyte
اللون
Black
قاعدة المعالج
LGA1851 socket
نوع الشريحة
Intel ® B860 Express Chipset
آر جي بي
Yes
منافذ M.2
3 x M.2 Socket 3 connectors
منافذ ساتا
4 x SATA 6Gb/s connectors
منافذ الذاكرة العشوائية
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
منفذ PCIE
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
منافذ الصوت
3 x audio jacks
واي فاي وبلوتوث
Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)- BLUETOOTH 5.3
منافذ يو إس بي
Chipset: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB headers - 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
