We Provide the Frame, You Create the Art

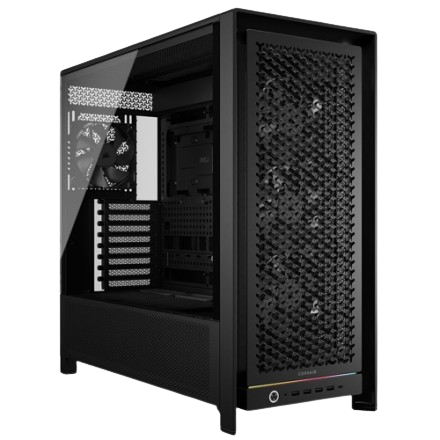

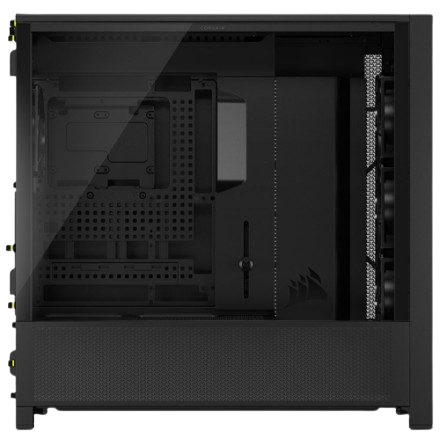

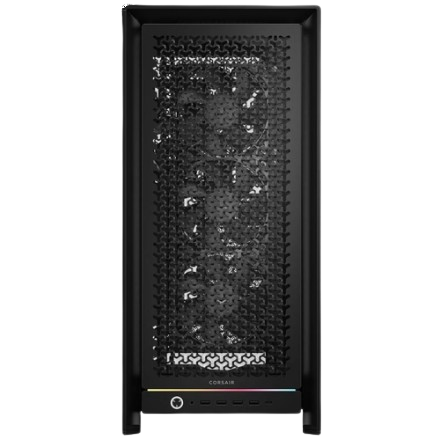

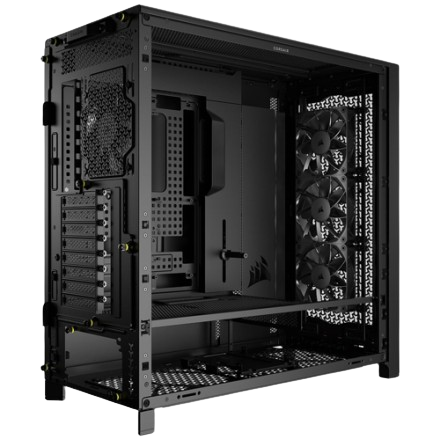

Build the high-airflow, low-temperature PC of your dreams in the CORSAIR FRAME 5000D highairflow case, featuring the innovative FRAME Modular Case System offering unprecedented flexibility to perfectly customize your build as you want it. The InfiniRail Mounting System simplifies fan installation, while support for up to a 420mm radiators and a new 3D Y-Pattern Airflow front panel ensure cool air is directed precisely where it’s needed most. The increased width and length ensure compatibility with the most powerful graphics cards and cooling options, with support for reverse connection motherboards future-proofing your system. We provide the frame. You create the art.
Cooler Type Support
Both Cooler
Air Cooler Height Support
175
Radiator Size Values
360/
240/
120/
280/
140/
420/
Built in Fans Number
4
Fans Number Support
12
موديل المنتج
FRAME 5000D RS
المصنع
Corsair
دعم المذربورد
ATX E-ATX MicroATX Mini-ITX
اللون
Black
خيارات المراوح
Front: 3x 120mm, 3x 140mm, 2x 200mm Top: 3x 120mm, 3x 140mm Side: 3x 120mm, 3x 140mm Bottom: 2x 120mm Rear 1x 120mm, 1x 140mm PSU Shroud: 2x 120mm
عدد المراوح المركبة مسبقا
4
الحد الأقصى للمراوح
12
وحدة تخزين هاردسك HDD
2 x 3.5"
وحدة تخزين هاردسك SSD
6 x 2.5" Internal
منافذ التوسعة
Standard Expansion Slots 8 Vertical Expansion Slots 3
عدد منافذ اليو إس بي 3.0
4
عدد المنافذ اليو إس بي تايب سي
1
منفذ السماعة/ المايكروفون
1
الزجاج
Side
الوزن
12.7 kg (Approx)
الأبعاد
250 x 542 x 556 (WxHxD mm)
