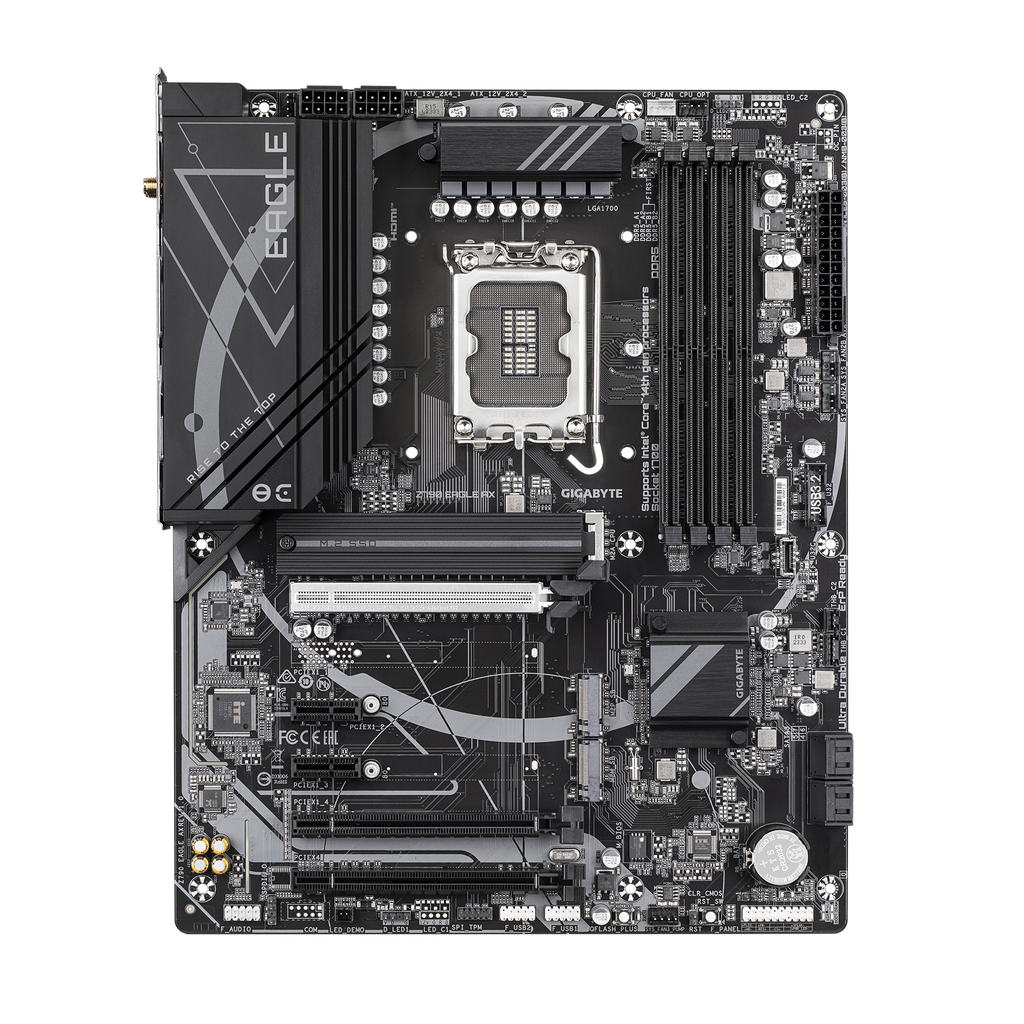

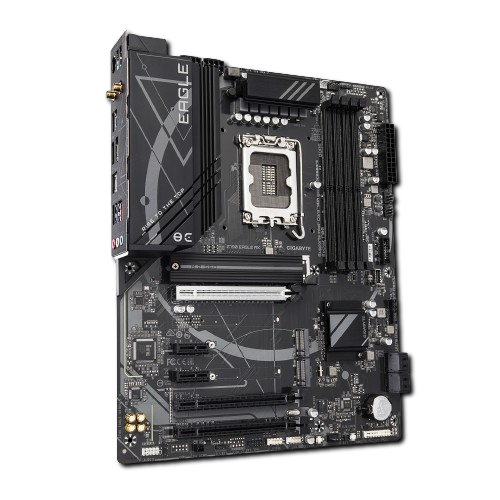

Z790 EAGLE AX
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance：Twin 12*+1+１ Phases Digital VRM Solution
- Dual Channel DDR5：4*DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
- EZ-Latch：PCIe 5.0x16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax

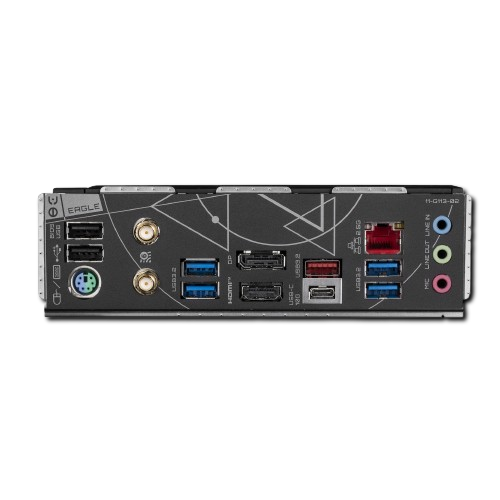

- Extended Connectivity：DP, HDMI, Rear USB-C® 10Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Durable Performance
Future Connectivity
Easy Friendly
Support OC
Intel
Memories Type Support
DDR5
Number of M.2 Support
4
Series Motherboard
Z
موديل المنتج
EAGLE AX
المصنع
GIGABYTE
اللون
BLACK
قاعدة المعالج
LGA1700 socket
نوع الشريحة
Intel® Z790 Express Chipset
منافذ M.2
4
منافذ ساتا
4 x SATA 6Gb/s connectors
منافذ الذاكرة العشوائية
4 x DDR5 DIMM sockets supporting up to 192 GB
منفذ PCIE
- 1 x PCI Express x16 slot, supporting
جيل PCIE
PCIe 5.0
منافذ الصوت
3 x audio jacks
منافذ يو إس بي
Chipset: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports, available through the internal USB headers
Wi-Fi
Intel® Wi-Fi 6E AX211
BLUETOOTH
BLUETOOTH 5.3
