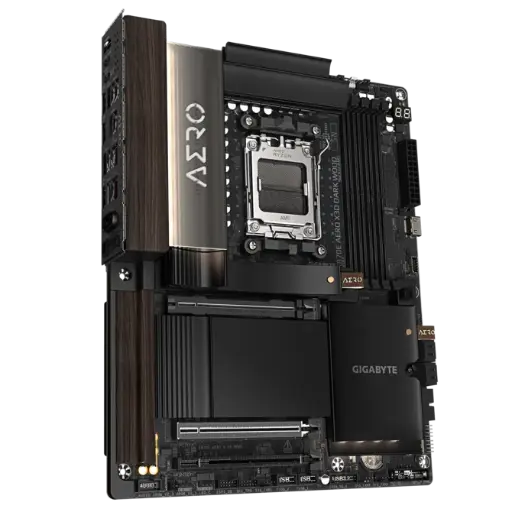

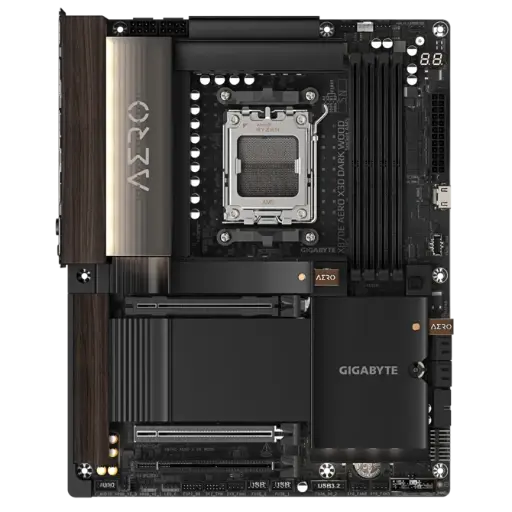

Gigabyte X870E AERO X3D DARK WOOD Edition, DDR5 AMD AM5 Gaming Motherboard
starting from
2099.00
-
2-Year Warranty
-
Your shipment is fully insured.
-
Free Shipping, Proccing time: 2 to 5 Days
-
Pay with
PRODUCT DETAILS
GIGABYTE X870E AERO X DK WOOD Motherboard
Raw Texture Reveal Timeless Elegance
A premium X870E Inspired by the Zen aesthetic of embracing imperfection, AERO WOOD recognizes beauty in the natural transformations of time and decay, embracing their quiet presence as a form of deep aesthetic appreciation.
Audio Jacks
2
Brand
Gigabyte
Color
Dark wood
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. * The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x8 mode * The PCIEX8 slot becomes unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Form Factor
ATX
M.2 Ports
4.0
Max Memory Size Support
256.0 GB
Max Memory Speed Support
9000.0 MHz
Model
X870E AERO X3D DARK WOOD
MotherBoard ECC Support
None-ECC
Motherboard Socket Support
AMD AM5
RAM Slots
4.0 Units
SATA Ports
4.0
Supported Memory Types
DDR5
USB Ports

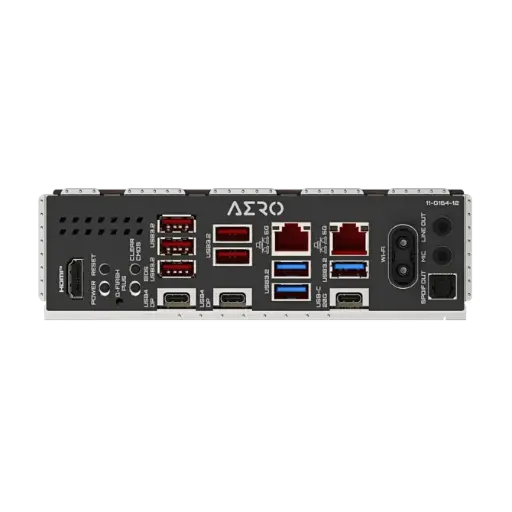

CPU+ASMedia USB4® controller: - 2 x USB4® USB Type-C® ports on the back panel CPU: - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset: - 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) - 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 3 x USB 3.2 Gen 1 ports on the back panel - 4 x USB 2.0/1.1 ports available through the internal USB headers
Wi-Fi & Bluetooth
MediaTek Wi-Fi 7 MT7927, RZ738 - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4
